Cartoning Machine XQ-TZ-160

A cartoning solution designed for high efficiency and versatility across multiple industries.

Production Speed :	20-55 boxes/min
Air Consumption:	300L/min or 18m³/h(6bar air pressure)
Feeding Height:	975±50mm
Discharge Height:	900±50mm
Packaging Range:	Max: 80×80×200mm; Min: 30×30×50mm
Dimensions:	5300×2150×2350mm(including feeding conveyor)
Total Power:	5KW
Power Supply:	380V 50HZ
Machine Weight	2.5 tons

Request a Quote Today

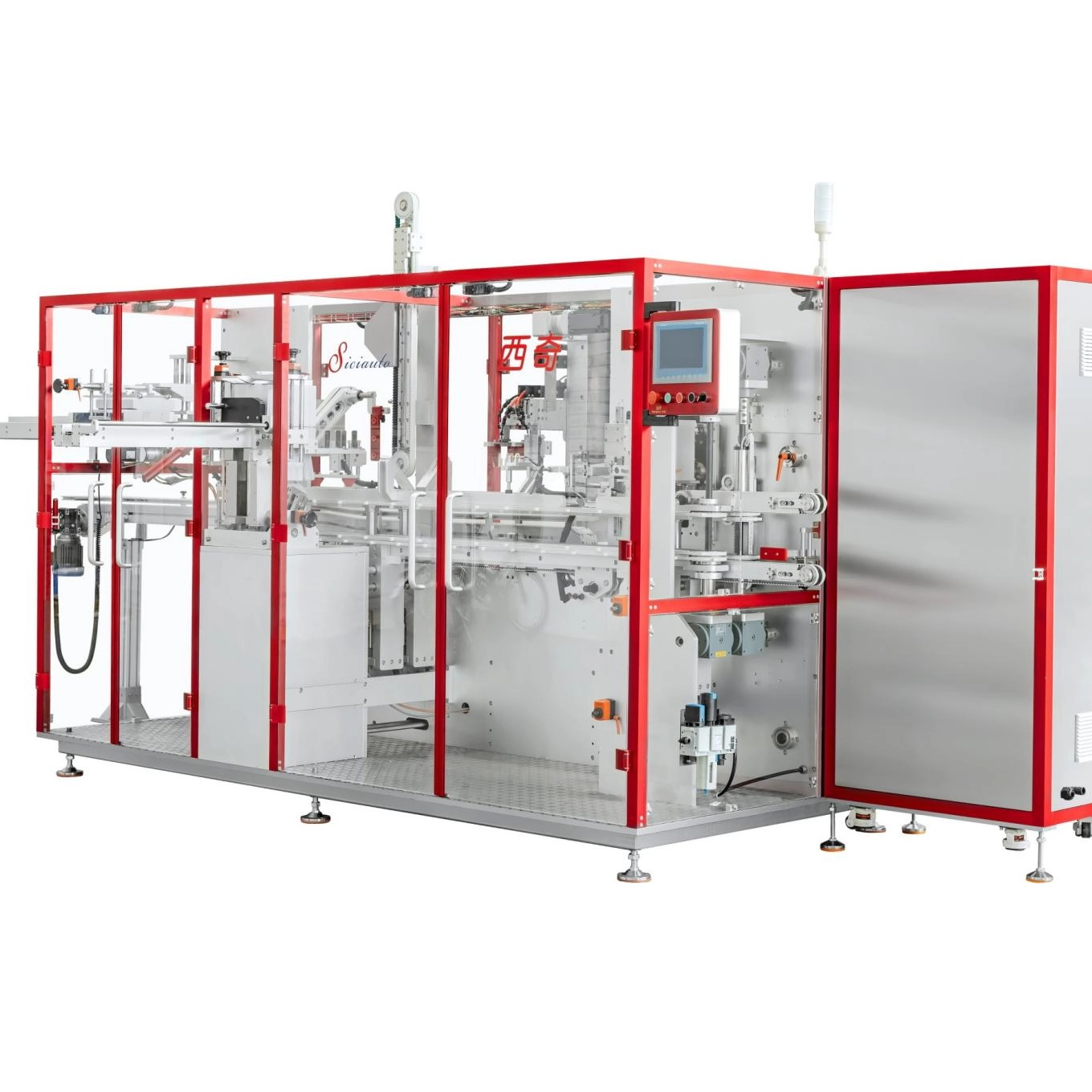

Introduction to Cartoning Machine XQ-TZ-160

What is a Cartoning Machine XQ-TZ-160?

The XQ-TZ160 Vertical Cartoning Machine with Inner Tray is a fully automatic, vertical packaging equipment designed specifically for the pharmaceutical and cosmetic industries. It seamlessly integrates automatic carton forming, product insertion, and inner tray placement, making it ideal for products requiring high packaging precision and presentation.

Contact Our Support Team

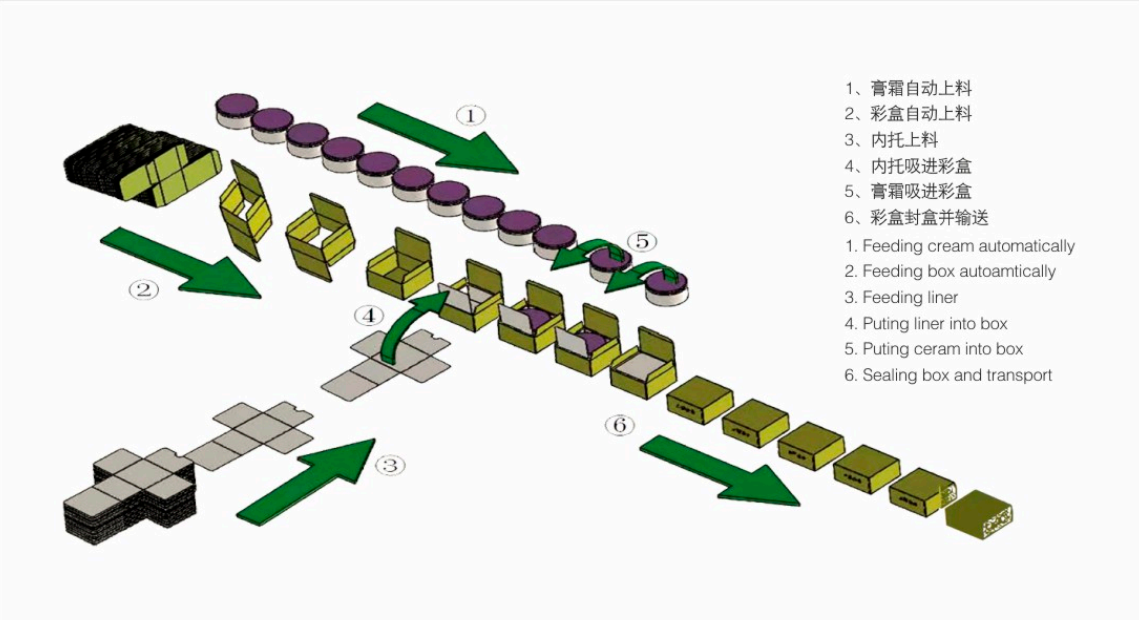

Process diagram

This flowchart details the precise operation of a fully automatic cream packaging line, which is an ideal automated packaging solution for the cosmetic industry. Key SEO terms include cosmetic packaging machinery, high-speed cartoning machine, and automated packaging system.

The process begins with automatic feeding of both the cream (1) and the outer box (2), followed by the liner (3). The machine then performs the crucial automatic assembly: the liner is precisely inserted into the box (4), and the cream container is accurately placed inside the lined box (5). The final step (6) is sealing and transport, which completes the cycle of this high-precision packaging equipment. This sequence highlights the system's efficiency and automation for cream filling and cartoning.

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Our XQ-TBP Labeling Machine offers fast labeling for beverages at 30-200 bottles/min. With precision and GMP compliance, it enhances food packaging efficiency.

Pharmaceuticals and Healthcare

XQ-TZ160 excels in pharmaceutical cartoning with liner insertion at 20-55 boxes/min. GMP-compliant, it boosts drug packaging precision and efficiency for pills and vials.

Cosmetics and Personal Care

The XQ-TZ160 provides automated cosmetics cartoning with liner at 20-55 boxes/min. Ideal for creams and serums, it ensures high-quality beauty product packaging.

Household Chemicals

XQ-TZ160 offers robust cartoning for household chemicals at 20-55 boxes/min. Perfect for detergents, it ensures safety and efficiency in chemical packaging.

What Makes Us Different

Designed for Multiple Formats

Independently engineered to serve manufacturers who frequently change specifications due to diverse carton sizes and small production runs.

Quick Changeover

This multi-functional vertical automatic cartoner with liner ensures short mold changeover time when switching between specifications, allowing for rapid adaptation to market demands.

Advantages-of-Our-Filling-and-Packing-Line

Cost and Space Efficiency

Features a low cost and small footprint, significantly lowering the investment threshold compared to larger, dedicated lines.

Intelligent Operation

Equipped with an advanced PLC control system and a touch screen control panel, making it easy and intuitive to set and change packaging parameters.

Get The Latest Price

Technical Specifications of Cartoning Machine XQ-TZ-160

Main Technical Parameters

Production Speed	20-55 boxes/min
Air Consumption	300L/min or 18m³/h(6bar air pressure)
Feeding Height	975±50mm
Discharge Height	900±50mm
Packaging Range	Max: 80×80×200mm; Min: 30×30×50mm
Dimensions	5300×2150×2350mm(including feeding conveyor)
Total Power	5KW
Power Supply	380V 50HZ
Machine Weight	2.5 tons

Applicable Carton Size Range

Length(A)	30-80mm
Width(B)	30-80mm
Height(C)	50-200mm
Carton Requirement	≥300g/m² national standard machine-made carton

Get In Touch With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation (typically 1-2 weeks), and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.
