Automatic Filling Line For Personal Care

Automatic Filling Line For Personal Care

A complete automated filling solution designed for high efficiency and versatility across multiple industries.
Filling range(ML): 100-500 500-1000 1000-3000 3000-5000
Filling speed(bottle/h): ≥4800 ≥3600 ≥2000 ≥2000
Filing accuracy(g): ≤100ml  ±0.5g 101-500 ±1g
 		 ±3g ±3g ±5g
Full-line power(kW): about 35 about45 about40 about40

Introduction to Automatic Filling Line For Personal Care

What is a Filling Line For Personal Care?

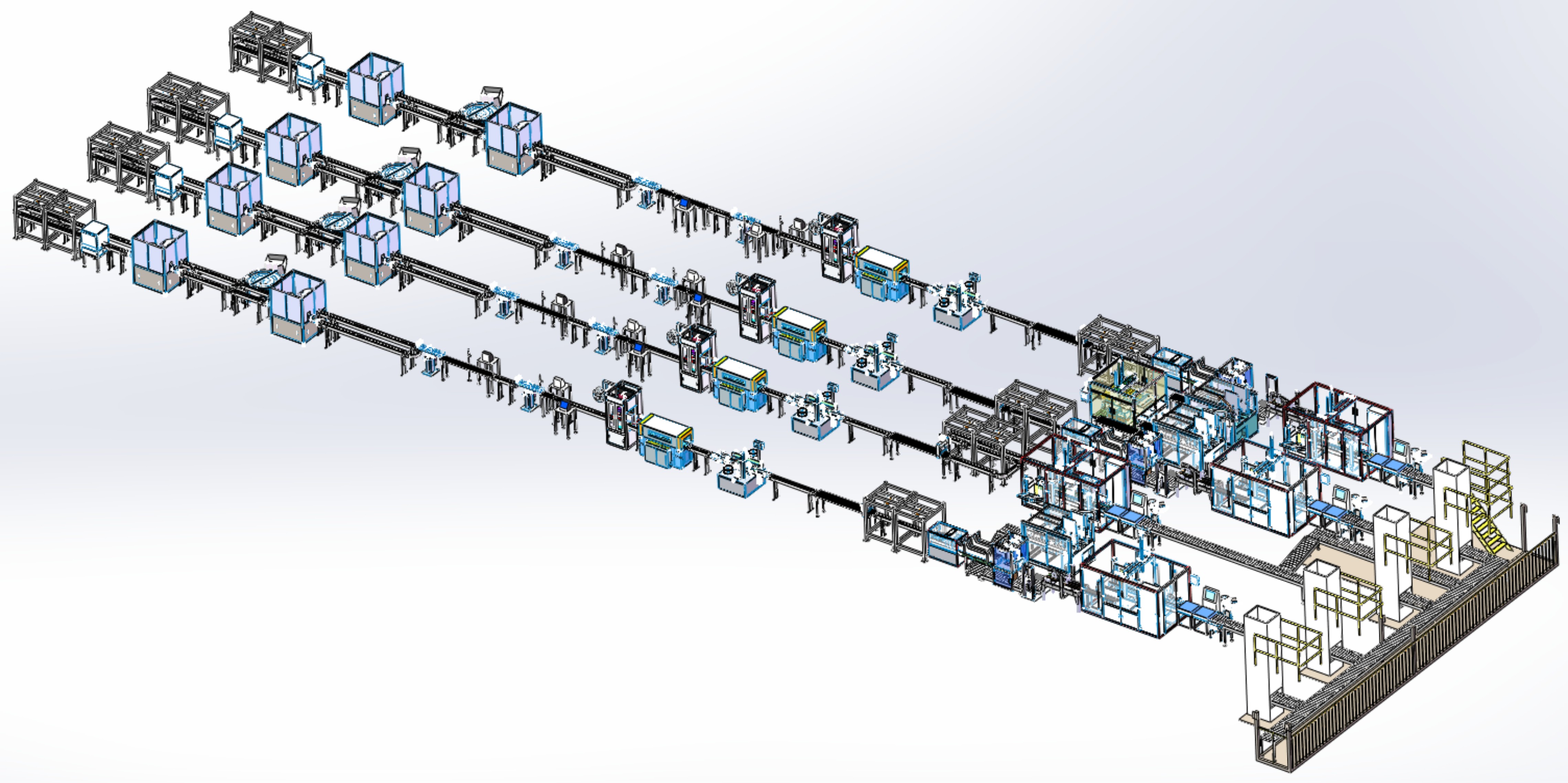

The Whole Filling and Packing Line is an integrated, one-stop solution that streamlines the process from bottle feeding to final palletizing. It combines advanced mold conveyor systems, servo-driven filling, automatic capping, cap misalignment detection, and bottle removal to deliver seamless production for various liquid and semi-liquid products.

Automatic Filling Line For Personal Care

Filling-Machines

Filling Machines

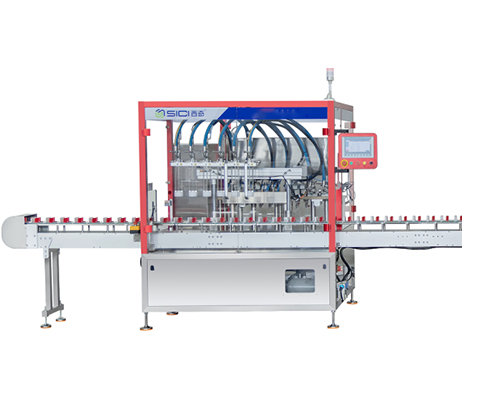

The 6-head servo-driven filling machine (XQ-ZGS100-6) uses advanced volumetric filling technology powered by servo motors. It ensures high precision (±0.5g for 20-100ml, ±0.5% for 101-1000ml) and supports various liquids, from water to high-viscosity emulsions. Features include adjustable filling speeds, anti-foaming technology, and PLC-controlled operation with a touchscreen HMI.

Capping-Machines

Capping Machines

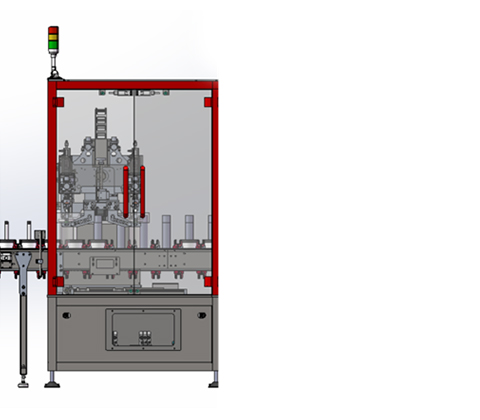

The 2-head automatic capping machine uses a two-claw system compatible with both round and flat caps. Equipped with silicone soft capping wheels to prevent cap damage, it achieves a speed of approximately 60 bottles per minute. The nylon clamping mechanism ensures bottle stability without scratching, with adjustable torque and speed.

Capping-Machines

Labeling Machines


Note: The provided document does not explicitly detail a labeling machine. The following is a placeholder based on typical filling and packing line configurations. If you have specific labeling machine details, please provide them for inclusion.
The labeling machine applies precise, high-speed labeling for various bottle types, ensuring accurate placement and compatibility with different label materials. It integrates seamlessly with the filling and capping systems for a streamlined workflow.

Case-Packers-and-Palletizers

Cartoning Machines


Note: The document does not mention a cartoning machine. The following is a placeholder. Please provide details if available.
The cartoning machine automates the process of placing filled and capped bottles into cartons, supporting various carton sizes and configurations. It enhances efficiency by reducing manual handling and ensuring consistent packaging.

Case-Packers-and-Palletizers

Case Packers and Palletizers


Note: The document does not explicitly cover case packers or palletizers. The following is based on the bottle removal machine and general industry standards.

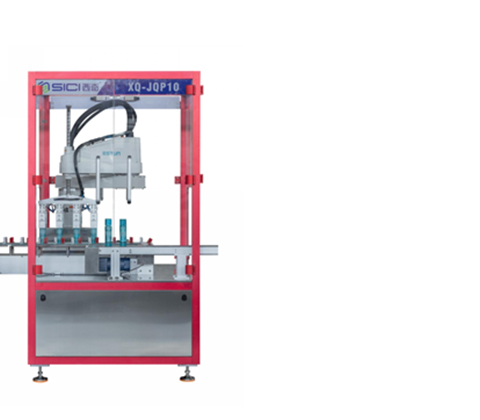

The line includes an automatic bottle removal and demolding machine with a robotic arm, capable of handling ≥60 bottles per minute. This system ensures precise bottle transfer and can be integrated with case packers and palletizers for final packaging and stacking, optimizing end-of-line processes.


Applications in Different Industries

Rectangle 3(5)

Food and Beverage


Ideal for filling and packing liquids like beverages, sauces, and dairy products (e.g., milk, yogurt). The SUS316L material ensures compliance with food safety standards.
Rectangle 3(4)

Pharmaceuticals and Healthcare


Supports precise filling of pharmaceutical liquids and emulsions, meeting stringent hygiene and accuracy requirements.
Rectangle 3(1)

Cosmetics and Personal Care


Handles viscous products like creams, lotions, and serums, with customizable filling volumes (20-1000ml) and bottle sizes.

Rectangle 3(2)

Household Chemicals


Suitable for packaging household cleaners, detergents, and chemical solutions, with robust construction for safe handling.


What Makes Us Different

efficiency




High Efficiency and Accuracy


Achieves a production speed of 60 bottles per minute with filling accuracy of ±0.5g/0.5%, reducing waste and boosting throughput.
manufacturing (1)




Flexible Customization


Supports a wide range of bottle sizes (φ28-100mm, 35-200mm height) and cap types (φ20-100mm). The mold conveyor and filling system can be tailored to specific needs.
Advantages-of-Our-Filling-and-Packing-Line
profit-and-loss (1)




Cost-Effective and Reliable


Durable SUS304/316L construction and a simple, low-maintenance design (e.g., one-piece conveyor belt) minimize downtime and operational costs.
iso-certificate




International Standards Compliance


Meets food, pharmaceutical, and chemical industry standards with stainless steel materials and sealed glass enclosures to reduce emissions.

Technical Specifications of the Filling and Packing Line

Main Technical Parameters

  Filling range(ML) 100-500 500-1000 1000-3000 3000-5000
  Filling speed(bottle/h) ≥4800 ≥3600 ≥2000 ≥2000
  Filing accuracy(g) ≤100ml ±0.5g 101-500 ±1g ±3g ±3g ±5g
  Full-line power(kW) about 35 about 45 about 40 about 40

Why Choose Us as Your Partner

experiences







Rich Industry Experience



Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support







Global After-Sales Support



We offer comprehensive training, installation (typically 1-2 weeks), and worldwide after-sales service to ensure smooth operation.

filling-machine







Successful Case Studies



Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.
