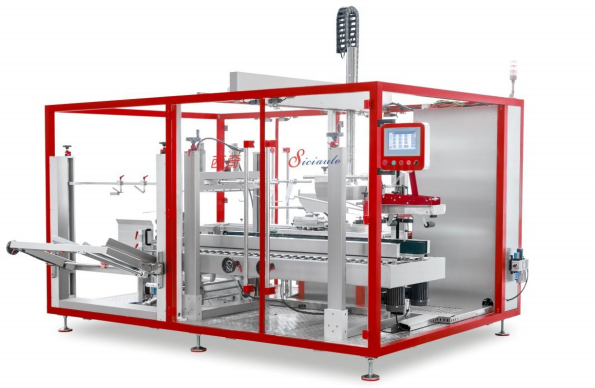

Vertical Type Automatic Case Packer XQ-ZX755

A Vertical Type Automatic Case Packer solution designed for high efficiency and versatility across multiple industries.
Packing Size : (250-550) mm × (200-400) mm × (160-400) mm
Production Capacity: 1-5 cases / min
Power Supply: 4.5kw 220v/380v 50/60Hz
Working Voltage: 220v/380v 50/60HZ
Material Feeding Height: 800±50mm

Outlet Height:

Available Tape Size:
 		 800±50mm

W(48,60)mm*L(100)mm
Air Compressure 5.5~6kg/cm2
Machine Weight 2000kg
Machine Dimensions L3370 mm ×W2250 mm ×H1900 mm

Introduction to Vertical Type Automatic Case Packer

What is a Vertical Type Automatic Case Packer？

The XQ-ZX755 Vertical Automatic Case Packer from SICI Auto is a high-performance, all-in-one automation solution designed to streamline your end-of-line packaging. It seamlessly integrates automatic case forming, product stacking/turning, precise loading, and bottom sealing into one continuous operation. By minimizing manual intervention, it significantly reduces labor costs and enhances packaging line speed and consistency, making it the ideal choice for automating packaging processes in industries such as cosmetics, pharmaceuticals, food, and electronics.

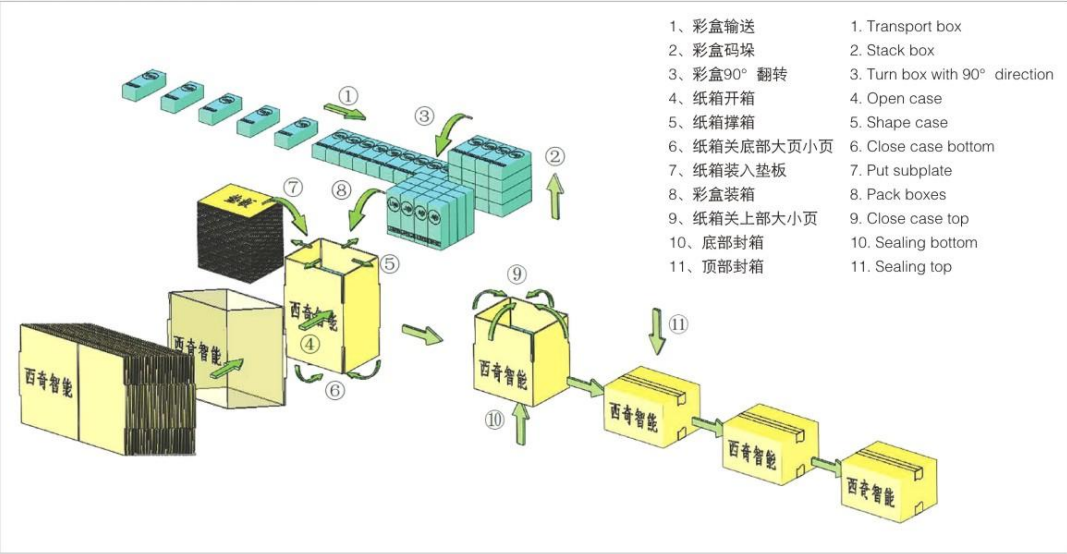

Process diagram

流程图
This diagram illustrates the complete process of an Automatic Case Packer, covering box transport, stacking, 90° turning, case opening, shaping, subplate inserting, box loading, and final bottom and top sealing. With an advanced packaging line, it ensures efficient and precise case packing for food, beverage, cosmetics, and pharmaceutical industries. The cartoning machine (box packing machine) combines high-speed performance with intelligent control, greatly improving productivity and guaranteeing consistent packaging quality. Designed for reliability and flexibility, this solution is ideal for modern automated packaging systems seeking stable operation and enhanced efficiency.


Machine Features of Vertical Type Automatic Case Packer

crop_1758852785321

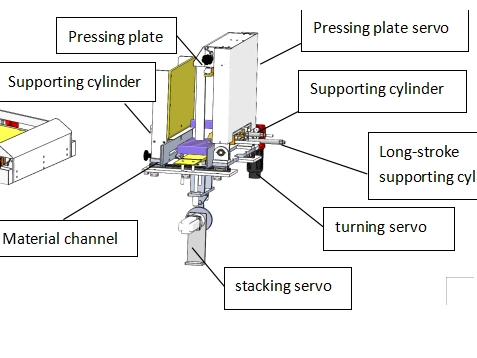

Stacking & Turning Mechanism

Servo-driven eccentric wheel lifting, combined with long-stroke cylinders and a turning servo, ensures precise counting, stacking, and smooth 90-degree rotation of products.
crop_1758852810883

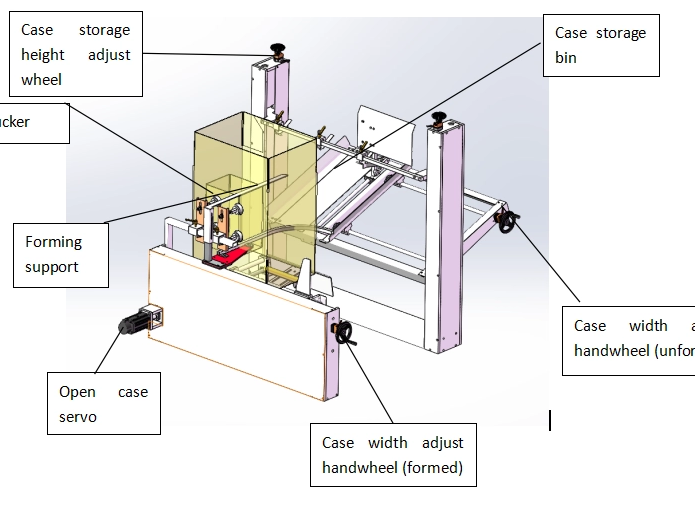

Storage & Unpacking Mechanism

Vertical magazine for high capacity; handwheel adjustments for quick size changeover; servo-controlled vacuum suckers for precise and reliable case picking and erection.

crop_1758852842080

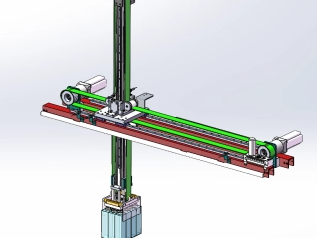

Gantry Robot

Robust structure ensures precise movement, guaranteeing products are picked and placed into the case accurately and without damage.
crop_1758852882147

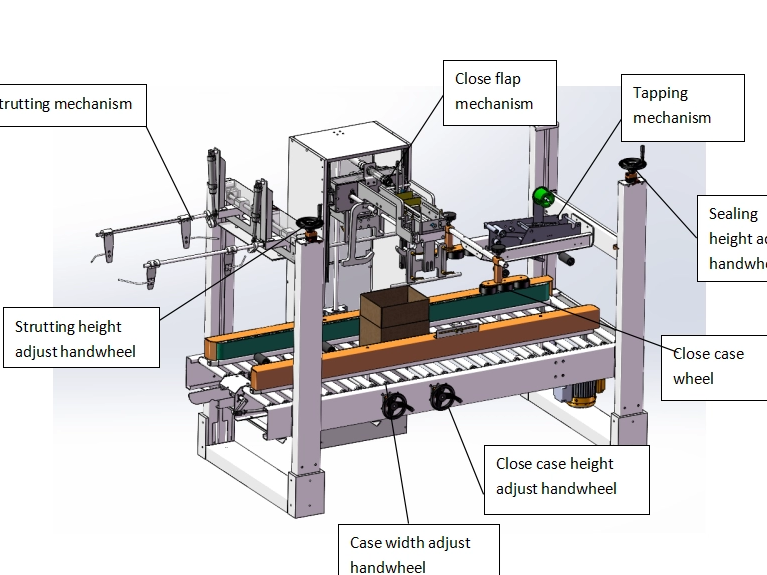

Strutting & Sealing Mechanism

Adjustable supporting and pressing devices provide a strong and neat seal for cases of various sizes.

Applications in Different Industries

Rectangle 3(5)

Food and Beverage


Our XQ-ZX755 Vertical Case Packer automates food packaging at 1-5 cases/min. GMP-compliant, it’s ideal for snacks and drinks, enhancing efficiency and safety.
Rectangle 3(4)

Pharmaceuticals and Healthcare


XQ-ZX755 ensures precise case packing for pharmaceuticals at 1-5 cases/min. GMP-compliant, it boosts safety and efficiency in drug and medical packaging.
Rectangle 3(1)

Cosmetics and Personal Care


The XQ-ZX755 automates cosmetics case packing at 1-5 cases/min. Perfect for perfumes and creams, it ensures efficient beauty product packaging.

Rectangle 3(2)

Household Chemicals


XQ-ZX755 provides robust case packing for chemicals at 1-5 cases/min. Ideal for detergents, it ensures safety and efficiency in household goods packaging.


What Makes Us Different

efficiency




All-in-One Efficiency


Completes the entire process from flat carton to sealed case in one machine, simplifying line layout and reducing capital investment.

manufacturing (1)




Proven Robustness & Reliability


Built with premium brand servo motors, PLCs, and precision mechanics, ensuring long-term stability at high speeds (up to 5 cases/min) and maximizing Overall Equipment Effectiveness (OEE).
Advantages-of-Our-Filling-and-Packing-Line
profit-and-loss (1)




Superior Production Flexibility


Quick changeover via servo drives and user-friendly HMI allows easy adaptation to various case and product sizes, ideal for high-mix, low-volume production.
x iso-certificate




Intelligent & User-Centric Design


Features a large touchscreen for intuitive parameter setting, status monitoring, and fault diagnosis. Easy to operate and maintain, reducing dependency on highly skilled labor.

Technical Specifications of Vertical Type Automatic Case Packer

Main Technical Parameters

Packing Size (LWH) (250-550) mm × (200-400) mm × (160-400) mm
Production Capacity 1-5 cases / min
Total Power 4.5kw
Working Voltage 220v/380v 50/60HZ
Material Feeding Height 800±50mm
Outlet Height 800±50mm
Available Tape Size W(48,60)mm*L(100)mm
Air Compressure 5.5~6kg/cm2
Machine Weight 2000kg
Machine Dimensions L3370 mm ×W2250 mm ×H1900 mm

Why Choose Us as Your Partner

experiences







Rich Industry Experience



Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support







Global After-Sales Support



We offer comprehensive training, installation , and worldwide after-sales service to ensure smooth operation.

filling-machine







Successful Case Studies



Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.
