Tracking-Type Filling & Capping Machine For Personal Care XQ-GSG1000-4 ＆ XQ-GSXG-7

A filling and capping solution designed for high efficiency and versatility across multiple industries.

Suitable Bottle Type :	50-100mm (customized)
Bottle Height :	175-240mm (customized, include cap)
Filling Range:	100ml-1000ml
Production Speed:	≤4500bottles/h (for 500g Laundry detergent as standard)
Filling Accuracy:	±1g (50-500ml), ±2g (501-1000ml)
Machine Size (L×W×H)：	3000×2500×2800mm

Introduction to Tracking-Type Filling & Capping Machine For Personal Care

What is a Tracking-Type Filling & Capping Machine For Personal Care?

The next-generation Full-Automatic Tracking Filling and Capping Monoblock Machine is specifically engineered for personal care products, cosmetics, and high-viscosity liquids. It seamlessly integrates high-precision servo tracking filling technology and a seven-head automatic tracking capping system onto one compact platform, ensuring a flawless filling-capping process. Utilizing volumetric metering, it guarantees extreme filling accuracy, while the servo diving tracking and multi-stage speed control effectively eliminate foaming and splashing issues. Its unique pump head tracking capping mechanism is ideal for automatically handling complex closure types such as pump heads and spray nozzles, making it the perfect choice for boosting your production efficiency and final product quality.

Contact Our Support Team

Key Components of Tracking-Type Filling & Capping Machine For Personal Care

Consult Sici Expert

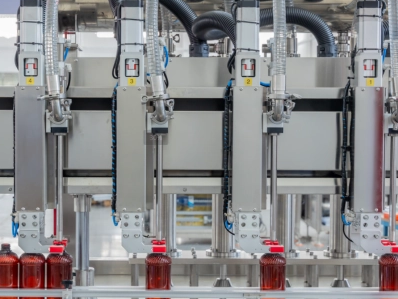

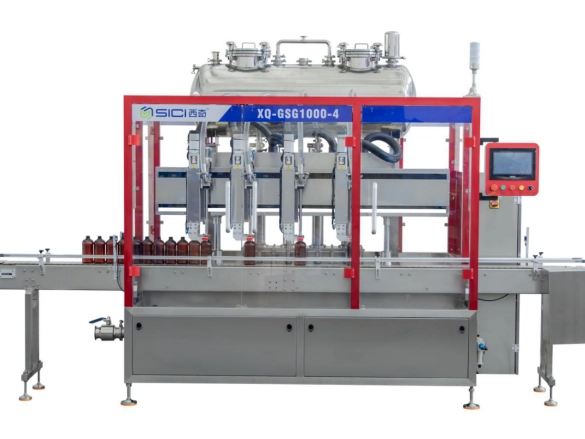

Filling Machines

The 4-Head Tracking Filling Machine uses servo-driven volumetric filling for precise, high-speed operation. Suitable for liquids of various viscosities, it is ideal for food, beverage, cosmetics, personal care, and pharmaceutical packaging, ensuring efficiency and consistent quality.

Details >

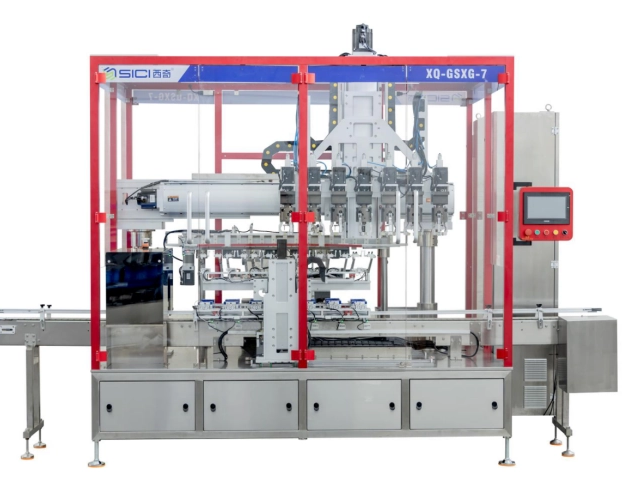

Capping Machines

The 7-Head Automatic Tracking Capping Machine features servo control and a three-jaw capping design for stable, reliable sealing. Compatible with various bottles and pump heads, it is widely used in food, beverage, cosmetics, personal care, and pharmaceutical packaging lines.

Details >

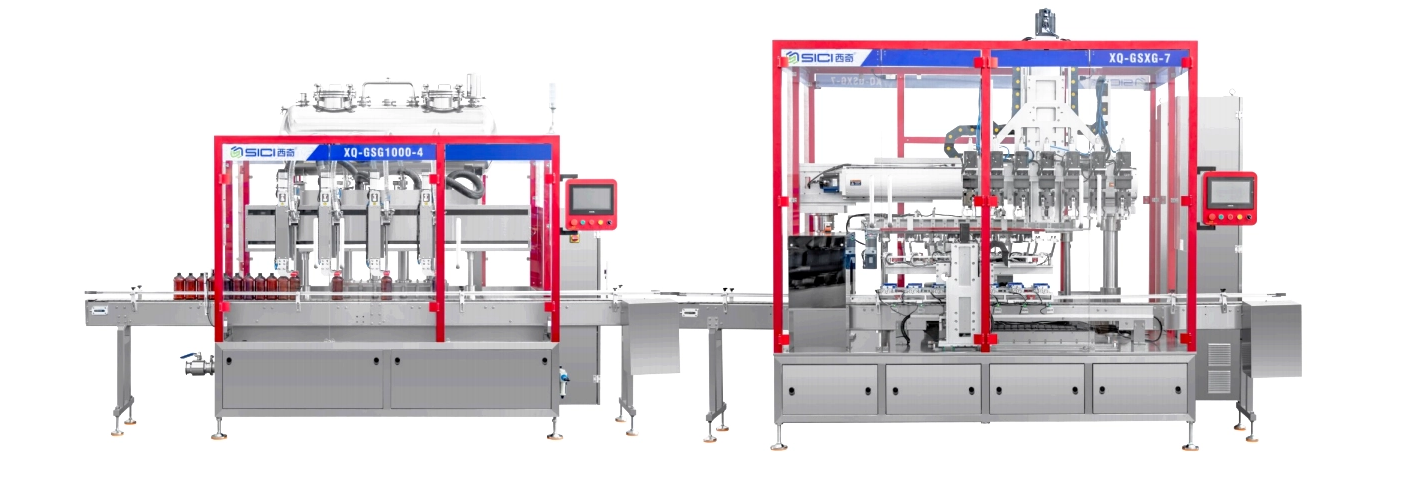

Workflow of the Complete Line

Start A Project With Us

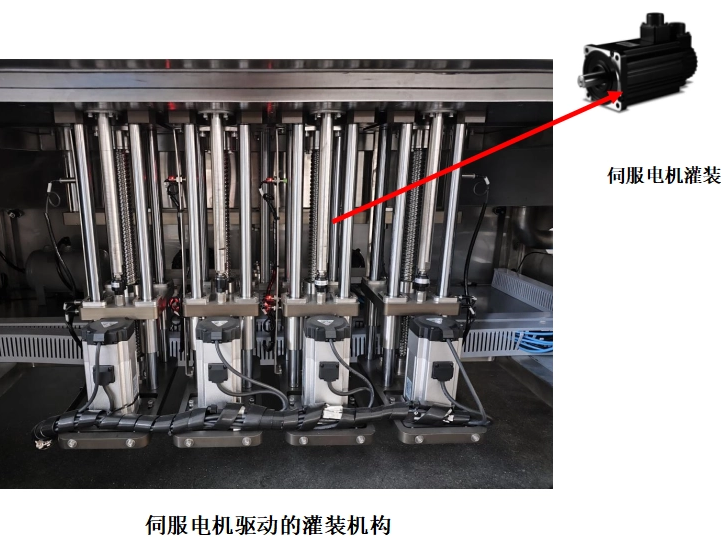

High-Precision Metering

Uses servo motor-driven volumetric filling for extremely high dosing accuracy (precision up to ±0.5%).

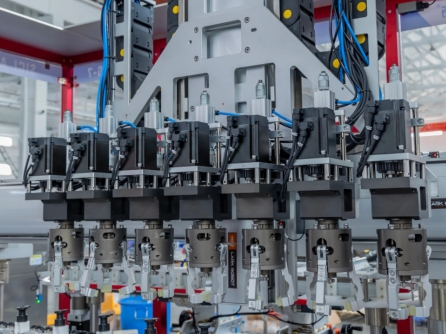

7-Head with High-Efficiency Tracking

Equipped with a seven-head capping mechanism and a unique tracking motion design that synchronizes pump tube insertion, clamping, and capping for stable and high-speed operation.

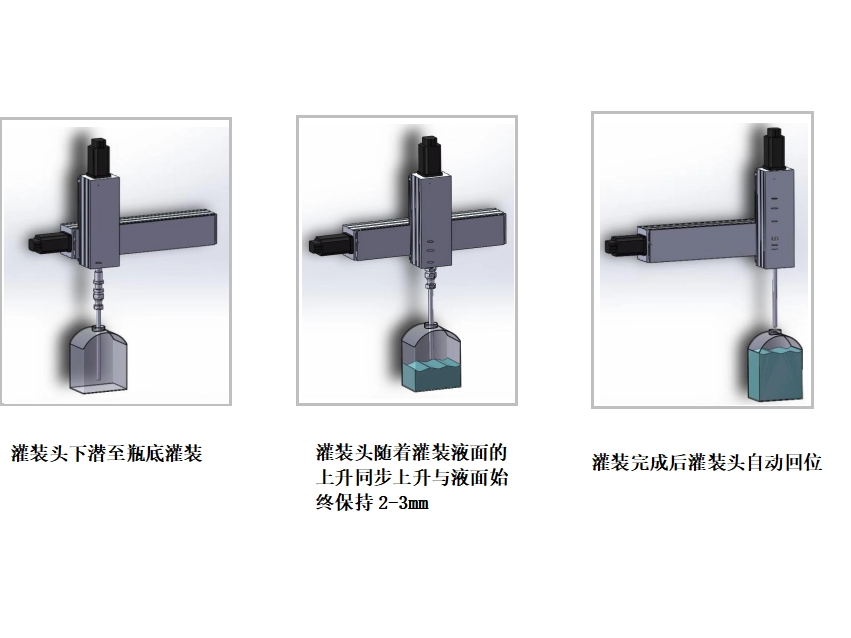

Anti-Foam Submersion Filling

Tracking filling with the head diving synchronously to the bottle bottom and featuring multi-stage speed control to effectively suppress foam for high-viscosity products.

Scratch-Free Capping

Uses a 3-jaw capping chuck with soft silicone jaws and adjustable torque, ensuring caps are secured without damage.

Intelligent Recipe Management

Features multi-level recipe selection for rapid changeovers of product specifications and volumes on the HMI, boosting line efficiency.

Precision Bottle Separator

Dual-servo specialized conveyor belts ensure accurate and reliable equal-distance output of bottles with high durability.

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Our machines offer precise filling and capping for beverages at 40-50 bottles/min. GMP-compliant, they enhance food safety and production efficiency.

Pharmaceuticals and Healthcare

It ensure accurate filling and capping for healthcare liquids at 40-50 bottles/min. GMP-compliant, they boost pharmaceutical safety and consistency.

Cosmetics and Personal Care

The machines excel in perfume filling and capping at 40-50 bottles/min. Ideal for creams, they ensure high-quality cosmetic packaging.

Household Chemicals

The machines provide efficient filling and capping for chemicals at 40-50 bottles/min. Perfect for detergents, they ensure safety and precision.

What Makes Us Different

Servo synchronous following technology

The filling heads descend to the bottle bottom and rise with the liquid level to prevent foaming and splashing, while the capping heads track bottles for dynamic high-speed capping.

Fully automatic integrated production line

Offers a fully automated solution from automatic cap feeding (vibratory bowl/ring line) and precision filling to tracking capping.

Advantages-of-Our-Filling-and-Packing-Line

Independent multi-head flexible production

This flexible production system quickly adapts to different bottles, caps, and materials (from aqueous to viscous liquids), enabling quick changeover for high-mix, low-volume production

Stable and reliable precision structure

The 3-jaw pneumatic capping with silicone heads and adjustable torque ensures tight seals without damaging caps.

Get The Latest Price

Parameters

Technical Specifications of Tracking-Type Filling & Capping Machine For Personal Care

Main Technical Parameters

Suitable Bottle Type	50-100mm (customized)
Bottle Height	175-240mm (customized, include cap)
Filling Range	100ml-1000ml
Production Speed	≤4500bottles/h (for 500g Laundry detergent as standard)
Filling Accuracy	±1g (50-500ml), ±2g (501-1000ml)
Machine Size (L×W×H)	3000×2500×2800mm

Get In Touch With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation (typically 1-2 weeks), and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

Tracking-Type Filling & Capping Machine For Personal Care FAQ

Q What are the technical features of the capping system?

A The three-claw capping mechanism with soft silicone capping heads prevents cap damage with adjustable torque; dual servo custom conveying belts ensure precise equidistant bottle transport; circular line feeding mechanism enables accurate pump head preparation.
Q What is the production efficiency of the equipment?

A The 4-head filling machine achieves speeds ≥4500 bottles/hour, while the 7-head capping machine reaches ≥60 bottles/minute, offering flexible configurations to meet high-efficiency production requirements.
Q What bottle types and products is the equipment suitable for?

A Suitable for various bottle types with diameters of Φ22-100mm and heights of 60-250mm, especially designed for personal care products like shampoo, body wash, and lotions, with a filling range of 100-1100ml.
Q What are the main features of this tracking-type filling and capping machine?

A The machine uses servo-driven tracking filling technology where the filling head rises synchronously with the liquid level, maintaining a 2-3mm distance to ensure splash-free and foam-free filling. The capping section employs a three-claw capping mechanism and pneumatic grippers that don't damage caps with adjustable torque, achieving integrated high-efficiency filling and capping.
