Overwrapping Machine XQ-SW320

A  overwrapping solution designed for high efficiency and versatility across multiple industries.
Model : XQ-SW320 /XQ-SW320G
Packing Size : (40-210)mm*(20-110)mm*(15-60)mm/(50-220)mm*(25-110)mm*(15-60)mm(LWH)
Production Capacity: 30-70 packs/min /80-130 packs/min
Total Power: 5 Kw/ 5 Kw
Working Voltage: 220V/ 220V
Air Consumption: 5-8 L/min / 5-8 L/min

Available Bottle Diameter:

Machine Weight:


0.4 Mpa / 0.4 Mpa

500 Kg /500 Kg

Introduction to overwrapping machine

What is a overwrapping machine?

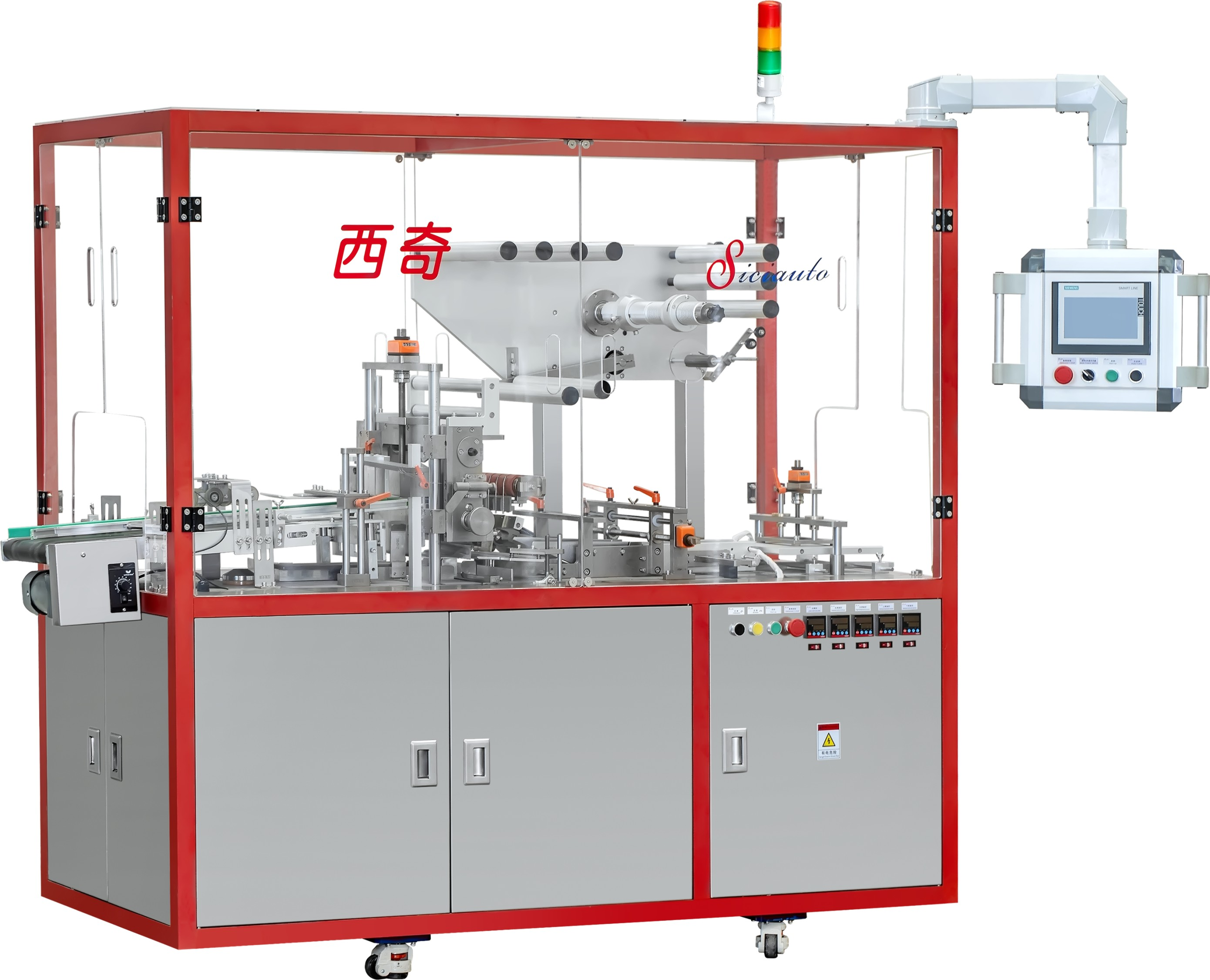

Wuxi Sici Auto Co., Ltd. presents the high-performance XQ-SW320 series fully automatic overwrapping machine. Designed for transparent film packaging of various three-dimensional products, it combines efficiency, stability, and intelligence, making it an ideal choice to enhance your production line. We offer two models: the Standard version (XQ-SW320) and the High-Speed version (XQ-SW320G) to meet different capacity requirements

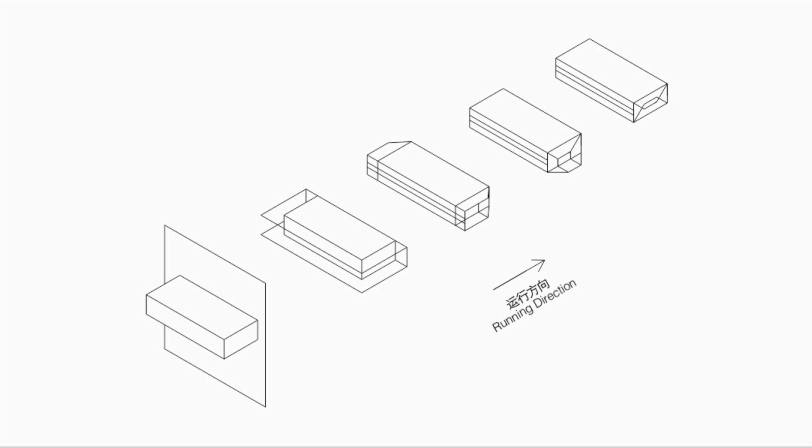

Schematic Diagram Of Packaging

This workflow illustrates the core function of the XQ-SW automatic overwrapping machine, a key piece of cosmetic packaging machinery. The process, vital for high-speed cellophane wrapping, begins with the product pushing through a transparent film. Following the Running Direction, the machine sequentially performs automatic folding and precise heat sealing to create a tight, professional 3D overwrapping effect. This is a highly efficient automated packaging solution, ensuring products like cosmetic boxes or bundles receive optimal moisture-proof and anti-counterfeiting sealing. Keywords: automatic overwrapper, cellophane packaging, high-speed cartoning

Machine Features of the overwrapping machine

Intelligent Control

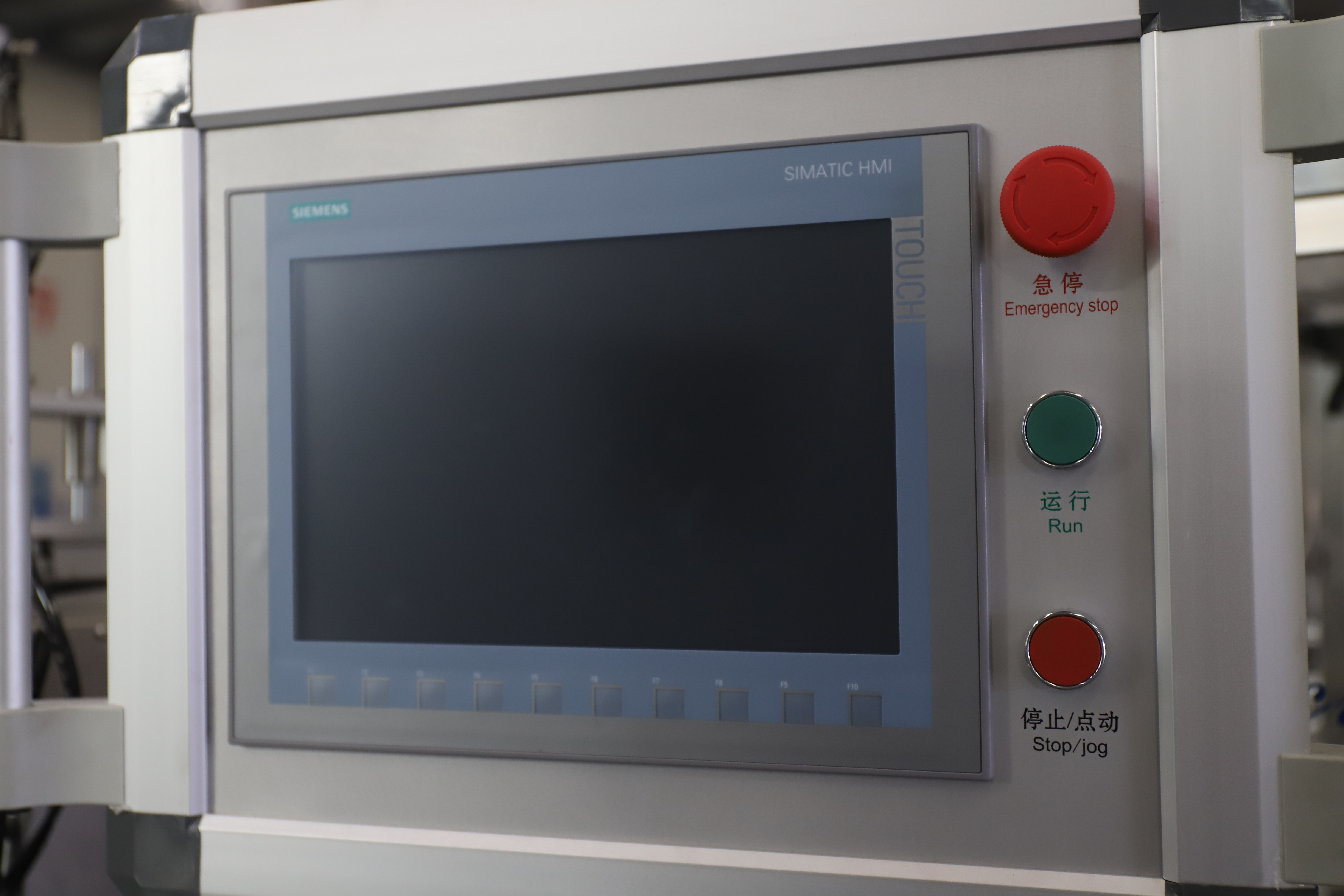

PLC and touch screen HMI for easy operation and precise control.

Efficient & Stable

Combination of cylinder and CAM drive ensures reliable performance with stepless speed adjustment.


Safety Protection

Equipped with fault diagnosis prompts and complete safety protection mechanisms.

Premium Materials

Key components use high-quality materials (e.g., quenched CAM, 304 stainless steel panel) for long-lasting durability.

Applications in Different Industries

Food and Beverage


Ideal for sauces, condiments, dairy, and functional drinks with strict hygiene requirements.

Pharmaceuticals and Healthcare


Ensures accurate dosing for syrups, solutions, and medical liquids under GMP compliance.

Cosmetics and Personal Care


Perfect for lotions, creams, serums, and other skincare products requiring hygienic and precise filling.


Household Chemicals


Handles detergents, cleaning solutions, and chemical liquids safely and efficiently.


What Makes Us Different

efficiency




High Efficiency & Outstanding Capacity


The XQ-SW320G model can achieve a high speed of 80-130 packs per minute, far exceeding standard models, greatly meeting the demands of large-scale production.
manufacturing (1)




Intelligent Control, Stable & User-Friendly


Equipped with PLC control and a touch-screen HMI, featuring fault diagnosis prompts and safety protection. Speed and film length are continuously adjustable, offering high automation and ease of operation
profit-and-loss (1)




AdWide Applicability & Flexible Adjustment


Capable of handling a wide range of packing sizes . Suitable for the transparent overwrapping of various 3D products in industries like cosmetics, pharmaceuticals, and food.
x iso-certificate




Robust, Sanitary & Reliable Quality


Constructed with 1.5mm thick 304 stainless steel panels and shells, and high-quality quenched ductile iron CAM, ensuring durability and cleanliness.

Technical Specifications of the Overwrapping Machine

Main Technical Parameters

Model XQ-SW320 Standard

 XQ-SW320G High-Speed

Packing Size (LWH) (40-210)mm*(20-110)mm*(15-60)mm

 (50-220)mm*(25-110)mm*(15-60)mm

Production Capacity 30-70 packs/min 80-130 packs/min
Total Power 5 Kw 5 Kw
FWorking Voltage 220V 220V
Air Consumption 5-8 L/min 5-8 L/min
Air Pressure 0.4 Mpa 0.4 Mpa
Machine Weight 500 Kg 500 Kg

Why Choose Us as Your Partner

experiences







Rich Industry Experience



Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support







Global After-Sales Support



We offer comprehensive training, installation , and worldwide after-sales service to ensure smooth operation.

filling-machine







Successful Case Studies



Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

The Overwrapping Machine FAQ

To Perfect Your Production!

SICIAUTO operates with a global vision, delivering automated equipment and customized packaging solutions for industries such as cosmetics, pharmaceuticals, and food. The concept of the 'Smart Factory' is embedded in every machine and production line we design.
