In modern industrial production, the accuracy and efficiency of filling machines directly determine product quality and production costs. In this race for "precision in every drop," the servo motor has become the core driving technological innovation. It is not just a power source but an intelligent unit that gives machines the ability to "sense" and "think." This article delves into the working principles of servo motors and shares how Wuxi SICI Intelligent Technology Co., Ltd. leverages this technology to provide customers with卓越的 smart filling and packaging lines.
A servo motor is a high-performance motor capable of achieving precise control over position, speed, and torque. Its fundamental difference from ordinary motors lies in its built-in "closed-loop control system," enabling it to adjust its behavior in real-time to achieve predetermined control objectives.
A complete servo system primarily consists of three parts:
Servo Motor: The power unit that executes movement.
Encoder: Acts as the "sensory system," monitoring the motor's position and speed in real-time.
Servo Drive: Serves as the "brain," receiving commands, processing feedback from the encoder, and controlling the motor.

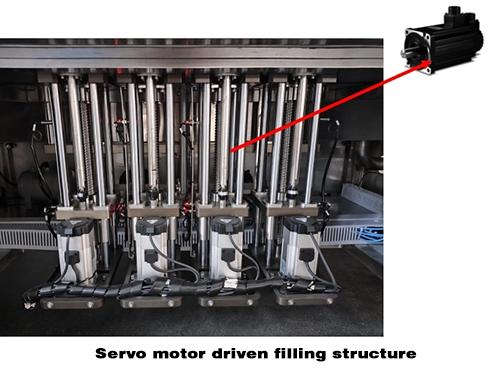

The operation of a servo motor in a filling machine is an intelligent, continuous cycle with millisecond-level response:
The machine's control system (PLC) sends target position and speed commands to the servo drive based on the set filling volume.
The servo motor starts, driving actuators such as pumps, pistons, or peristaltic pumps to begin filling.
The high-precision encoder at the motor's tail continuously monitors the actual rotation and instantly transmits data back to the drive.
The servo drive compares the "actual value" with the "target value." Upon detecting any slight deviation, it immediately adjusts the output current and voltage to compensate the motor.
Once the system confirms the motor has accurately reached the target position, filling is complete. The motor stops and prepares for the next cycle.
Servo systems completely eliminate the "lost steps" potential in traditional stepper motors, stabilizing filling accuracy within ±0.5%. This significantly reduces material waste and is crucial for high-value products (e.g., pharmaceuticals, high-end cosmetics).
With rapid start-stop cycles and smooth acceleration/deceleration, servo motors significantly shorten single filling cycles, thereby elevating overall line production efficiency to new heights.
When changing products or container specifications, operators simply need to call up new parameters via the Human-Machine Interface (HMI), eliminating cumbersome mechanical adjustments and truly enabling flexible production.
Precise motion control allows the filling valve to perform a quick suck-back action at the end of the cycle, effectively preventing drips, keeping equipment and the working environment clean, and complying with stringent standards like GMP.
Feature | Servo Motor | Stepper Motor | Pneumatic |
Accuracy | High | Medium | Low |
Speed | High | Medium | Medium |
Flexibility | High | Low | Low |
Maintenance | Low | Medium | High |
Clearly, servo systems offer the best balance in accuracy, speed, and adaptability, representing the highest standard in current filling drive technology.
Precise filling of injections, oral liquids, ointments, and various drug formulations.
Efficient and hygienic handling of sauces, edible oils, juices, dairy products, etc.
Drip-free, high-quality filling of perfumes, lotions, serums, and skincare products.
Accurate metering of various chemical reagents, cleaning agents, etc.
Container Type: Bottle, tube, pouch, can?
Product Characteristics: Viscosity, flowability, presence of particles?
Production Capacity Requirements: Desired shift output or hourly output?
Accuracy Requirements: Allowable error range?
Industry Standards: Need to meet specific hygiene or explosion-proof standards?
We understand that each customer's needs are unique. Therefore, the SICI team provides deep customization services, from demand analysis and solution design to equipment manufacturing, ensuring your servo filling solution perfectly matches production realities.
At Wuxi SICI Intelligent Technology Co., Ltd., we deeply integrate advanced servo control systems into various filling equipment, committed to solving customers' practical production pain points:
Automatically handles challenges posed by different viscosities and irregularly shaped containers.
PLC combined with a touchscreen makes parameter setting and production monitoring clear at a glance.
Equipment supports data collection and remote management, laying the foundation for building intelligent factories.
Our series of servo filling machines possess the following outstanding features:
Easily handles from 20ml to 1000ml.
Up to 80 bottles/minute (depending on specifications).
Comprehensive accuracy better than ±0.5%.
Precise synchronization from bottle conveying, filling, to capping.
As a national high-tech enterprise certified with ISO9001 Quality Management System and EU CE certification, and holding over 100 national patents, SICI Intelligent provides a solid foundation for reliable technology and service to our customers.
SICI Intelligent provides not just standalone equipment but complete filling and packaging line solutions. Here, servo motors act as "coordinators," ensuring seamless connection between stations like cartoning machines, 3D transparent film wrapping machines, labeling machines, and case packers, enabling smooth material flow and maximizing overall production capacity.
Regularly check encoder connections to ensure stable signal transmission.
Keep motor surfaces clean, avoiding contamination from oil and moisture.
Follow schedules for backing up and calibrating drive parameters.
Provide systematic training for operators and maintenance personnel.
AI Empowerment: Equipment capable of self-learning and optimizing filling parameters to handle complex working conditions.
Deepened Industrial IoT: Achieving more comprehensive equipment health prediction and energy efficiency management.
Improved Energy Efficiency: New-generation servo systems will focus more on energy saving and environmental protection, reducing operating costs.
With long-term focus on the field of customized filling and packaging lines, we have accumulated rich project experience and can accurately understand and solve your production challenges.
We provide one-stop services from solution planning, equipment R&D, manufacturing, installation, commissioning, to technical training, acting as your trustworthy long-term partner.
With offices in Guangzhou, Shantou, and other locations, we can quickly respond to customer needs across China, providing timely technical support and service
Servo motor technology has redefined the standards of modern filling. It brings not only improvements in accuracy and efficiency but also leaps in production flexibility and intelligence. Choosing Wuxi SICI Intelligent Technology Co., Ltd. means selecting a strategic partner well-versed in this field and dedicated to creating value for you through innovative technology.
Contact the SICI team now to obtain your customized filling and packaging line solution. Let's work together to elevate your production efficiency and product quality to new heights! 全部翻译成中文
