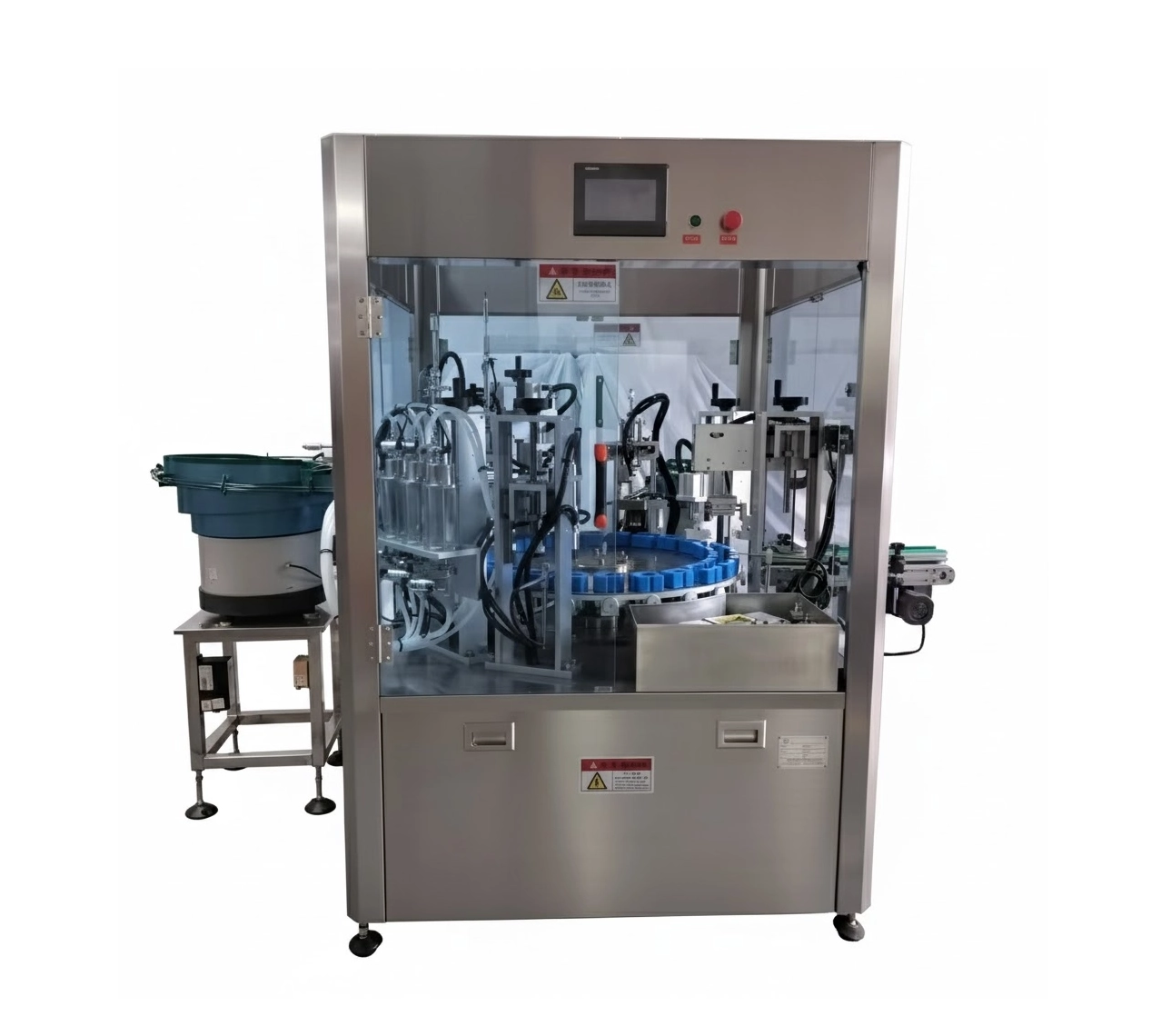

Fully Automatic Perfume Filling Machine XQ-XS-Q

A fully automatic perfume filling solution designed for high efficiency and versatility across multiple industries.

Production capacity:	40-50 bottles/min
Filling volume：	15-150ml
Available bottle size：	φ20mm~φ50mm
Filling accuracy:	±0.1g for 5-30ml;±0.5g for 31-100ml;±0.5% for 101-500ml
Air pressure:	0.5-0.8Mpa
Air consumption:	150L/min
Power supply:	AC380V，50HZ
Machine weight：	About 700kg

Request a Quote Today

Introduction to Fully Automatic Perfume Filling Machine

What is a Fully Automatic Perfume Filling Machine?

The XQ-XS-Q Fully Automatic Perfume Filling Machine is a high-performance, precision-engineered packaging solution designed to meet the stringent requirements of the high-end cosmetics industry for perfumes and fragrances. Integrating filling, cap feeding, and capping into one seamless process, it achieves a stable output of 40-50 bottles per minute, making it the ideal choice to enhance your production line's automation and product quality.

Contact Our Support Team

Machine Features of Fully Automatic Filling Machine

Start A Project With Us

Precision Vacuum Filling

Ensures every bottle has a consistent liquid level, providing a premium, uniform look for your brand. Achieves an accuracy of ±0.1g for 5-30ml.

Fully Automatic Cap Feeding System

Eliminates manual labor for feeding pump caps, middle caps, and outer caps. Vibratory bowl feeders ensure a continuous and stable supply, maximizing efficiency.

Intelligent Bottle Detection

Photoelectric sensors detect the presence of bottles, controlling the filling nozzles to operate only when a bottle is in place. This "no bottle, no fill" feature reduces product waste.

Stable Two-Stage Capping

A pre-capping followed by a final pressing mechanism guarantees that caps are secured firmly and correctly every time, preventing leaks and ensuring product integrity.

User-Friendly PLC Control

Simple operation via a color Touch Screen and a programmable logic controller (PLC). Easily set and adjust parameters for different bottle sizes and products.

Robust & Sanitary Design

Constructed with high-quality materials, including a SUS 304 stainless steel frame, making it corrosion-resistant and easy to maintain, meeting industry hygiene requirements.

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Our XQ-XS-Q Filling Machine offers precise liquid filling for beverages at 40-50 bottles/min. With vacuum technology, it enhances food safety and production efficiency.

Pharmaceuticals and Healthcare

XQ-XS-Q ensures accurate filling for healthcare liquids at 40-50 bottles/min. Its vacuum system boosts pharmaceutical safety and production consistency.

Cosmetics and Personal Care

The XQ-XS-Q excels in perfume filling at 40-50 bottles/min with vacuum technology. Ideal for toners, it ensures high-quality cosmetic packaging.

Household Chemicals

XQ-XS-Q provides efficient filling for household liquids at 40-50 bottles/min. With vacuum control, it ensures safety for detergents and cleaners.g.

What Makes Us Different

Modular Whole-Line Integration

Designed for seamless integration with conveyor systems, auto feeding systems, and downstream robot bottle handling, it forms a complete perfume filling production line.

Stable & Efficient Turntable Drive

This robust mechanical design guarantees reliable performance for continuous production, making it an ideal choice for building efficient filling production lines.

Advantages-of-Our-Filling-and-Packing-Line

Flexible Bottle Compatibility

Featuring a flexible design, the machine's adjustable bottle holders accommodate various diameters from φ20mm to φ50mm, suitable for both glass bottles and plastic bottles.

Fully Automatic Cap Assembly

This end-to-end automation replaces manual labor, significantly boosting the efficiency and stability of perfume production lines.

Get The Latest Price

Technical Specifications of Fully Automatic Perfume Filling Machine

Main Technical Parameters

Production capacity	40-50 bottles/min
Filling volume	15-150ml
Available bottle size	φ20mm~φ50mm
Filling accuracy	±0.1g for 5-30ml; ±0.5g for 31-100ml; ±0.5% for 101-500ml
Air pressure	0.5-0.8Mpa
Air consumption	150L/min
Power supply	AC380V，50HZ
Machine weight	About 700kg

Working Process

1.Bottle Infeed: Empty bottles are placed on the adjustable bottle holder.
2.Detection & Filling: Sensors detect the bottle. Nozzles dip in and fill by vacuum to a precise level.
3.Auto Cap Feeding: Vibratory bowls orient and supply the caps automatically.
4.Capping & Pressing: Caps are placed and securely pressed onto the bottles.
5.Bottle Output: Finished products are conveyed out, ready for the next packaging stage.

Get In Touch With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation (typically 1-2 weeks), and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

Fully Automatic Perfume Filling Machine FAQ

Q What is the filling accuracy and speed of the equipment?

A Filling accuracy is ±0.1g for 5-30ml, ±0.5g for 31-100ml, and ±0.5% for 101-500ml. Stable production speed reaches 40-50 bottles/minute.
Q Do you provide complete line solutions?

A Yes, we provide complete filling line solutions from the main machine and filling system to conveyor systems and automatic cap feeding, supporting customized configurations to meet different capacity requirements.
Q What are the advantages of the machine's filling technology?

A It uses vacuum equal-level filling technology, employing triple filling and a liquid level suction device to ensure consistent liquid level height in each bottle, especially suitable for high-end perfume packaging.
Q Does it support different specifications of perfume bottles?

A It supports bottle diameters from φ20mm ~ φ50mm and filling volumes from 15-150ml. Customizable adjustable bottle holders can be tailored to various bottle shapes.
