Universal Filling & Packing Line

A complete automated filling and packing solution designed for high efficiency and versatility across multiple industries.

Request a Quote Today

Suitable Bottle Typet:	Ф28~100mm(Customized)
Bottle Height:	35-200mm(Min. height not include cap, Max. height include cap)(Can be customized according to customer packaging materials)
Filing Range:	20ml-1000 ml
Production Speed:	60 Bottles/min(Take 150ml lotion as standard)
Filling Accuracy:	20-100ml,+0.59;101-1000ml,+0.5%
Power Supply:	AC220V,50Hz;Power12KW
Compressed Air:	0.5~0.7MPa(Dry and clean compressed air must be used)

Introduction to Filling and Packing Line

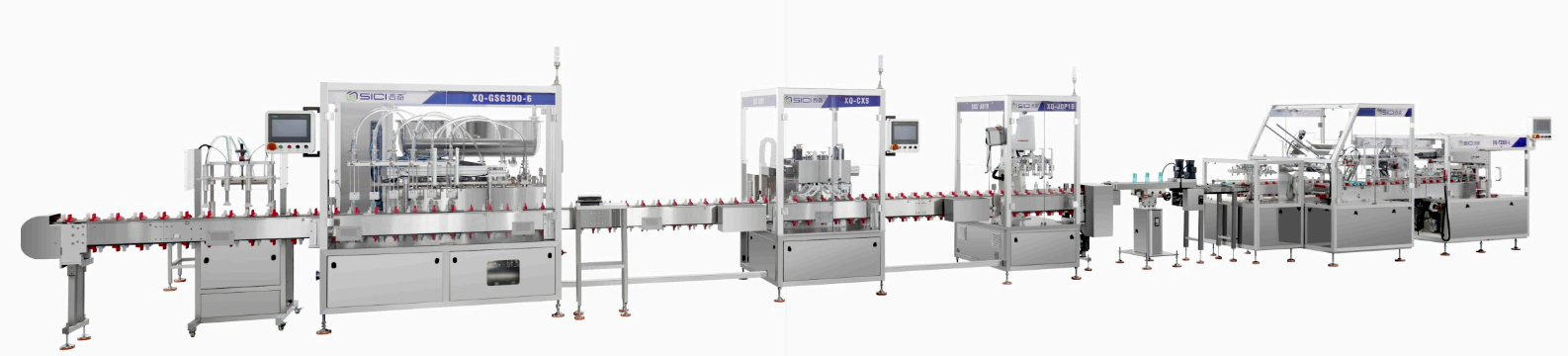

What is a Filling and Packing Line?

The Whole Filling and Packing Line is an integrated, one-stop solution that streamlines the process from bottle feeding to final palletizing. It combines advanced mold conveyor systems, servo-driven filling, automatic capping, cap misalignment detection, and bottle removal to deliver seamless production for various liquid and semi-liquid products.

Contact Our Support Team

Benefits of a Complete Solution

Increased Efficiency

Achieve up to 60 bottles per minute, reducing production time.

Labor Savings

Fully automated processes minimize manual intervention.

Consistency & Compliance

SUS304/316L stainless steel construction ensures compliance with food and pharmaceutical standards.

Versatility

Handles a wide range of bottle sizes (φ28-100mm, 35-200mm height) and filling volumes (20-1000ml).

Key Components of the Filling and Packing Line

Consult Sici Expert

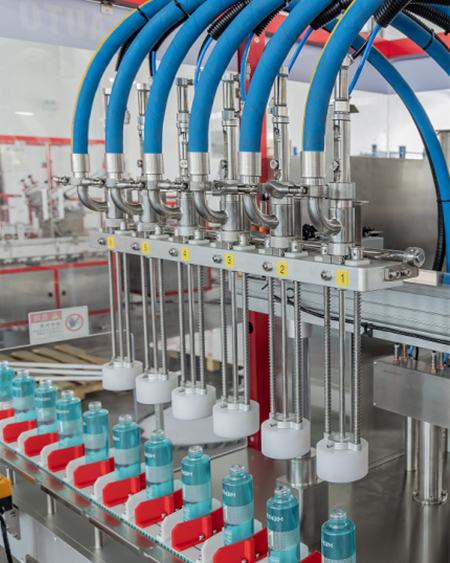

Filling Machines

The 6-head servo-driven filling machine (XQ-ZGS100-6) uses advanced volumetric filling technology powered by servo motors. It ensures high precision (±0.5g for 20-100ml, ±0.5% for 101-1000ml) and supports various liquids, from water to high-viscosity emulsions. Features include adjustable filling speeds, anti-foaming technology, and PLC-controlled operation with a touchscreen HMI.

Details >

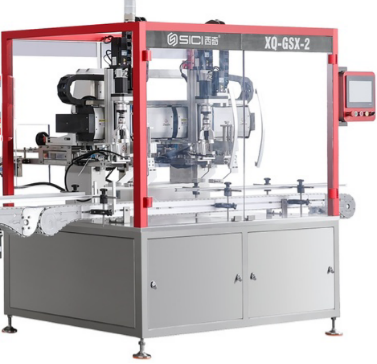

Capping Machines

The 2-head automatic capping machine uses a two-claw system compatible with both round and flat caps. Equipped with silicone soft capping wheels to prevent cap damage, it achieves a speed of approximately 60 bottles per minute. The nylon clamping mechanism ensures bottle stability without scratching, with adjustable torque and speed.

Details >

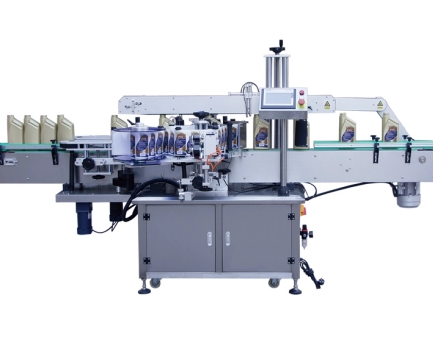

Labeling Machines

Our double-side labeling machine supports flat, round, and square bottles, delivering ±1mm accuracy at 60-80 bottles per minute. It features Siemens PLC control for reliable, high-speed operation.

Details >

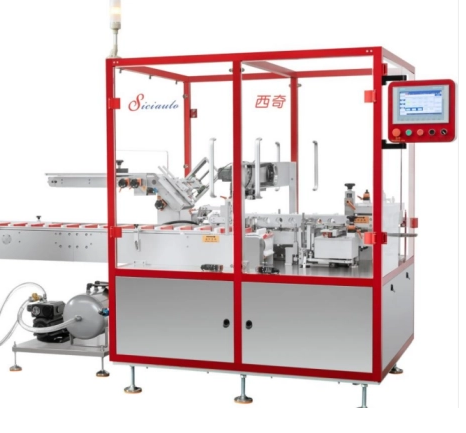

Cartoning Machines

The TZ series cartoning machine offers patented mechanisms for scratch-free box opening and precise packing, supporting sizes from 63-220mm in length. It achieves 30-65 packs per minute with GMP compliance

Details >

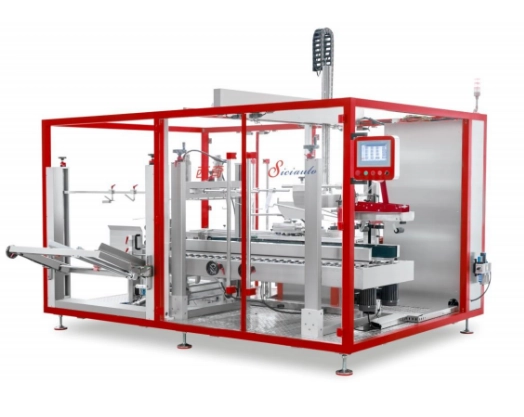

Case Packers and Palletizers

Our case packer and collaborative robot palletizer handle boxes up to 550x400x400mm, stacking up to 1.9m high at 8-10 boxes per minute. They ensure efficient, automated case forming and palletizing.

Details >

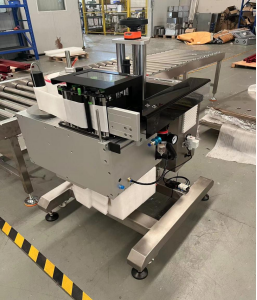

Case Printing Labeling Machine

The Case Printing Labeling Machine of Wuxi Sici Auto is specially designed for side labeling of cartons and barrels, and supports single machine or production line integration. ±1mm high precision, Siemens PLC control, speed 10-25m /min, 900W power, 80kg weight, sturdy and durable, intelligent photoelectric tracking to avoid label waste

Details >

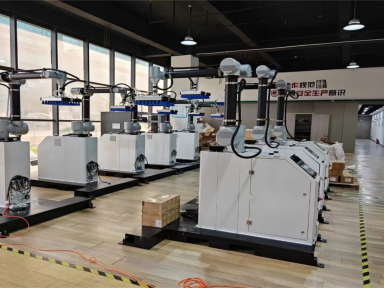

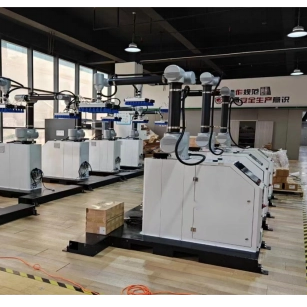

Collaborative Robot Palletizing

The collaborative robot palletizing system (XQ-MD30) of Wuxi Sici Auto supports a load of 30kg, with a maximum palletizing height of 1.9m and a speed of 8-10 times per minute. Equipped with an intelligent control system and safety features (such as emergency stop), it is suitable for 1200x1000mm pallets and has an IP54 protection rating, ensuring efficient and flexible automated palletizing

Details >

Workflow of the Complete Line

Start A Project With Us

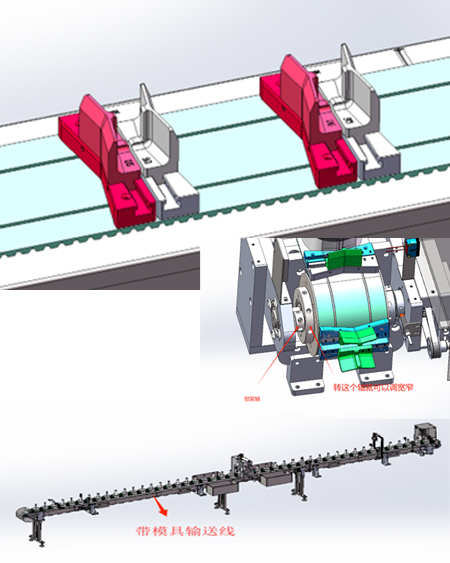

Bottle Feeding

The mold conveyor system adjusts mold sizes manually to accommodate bottles (φ28-100mm, 35-200mm height), ensuring stable and equidistant transport to prevent tipping.

Filling

Six servo-driven filling heads follow bottles, maintaining a 2-3mm gap from the liquid surface to minimize foaming, with precise metering (20-1000ml).

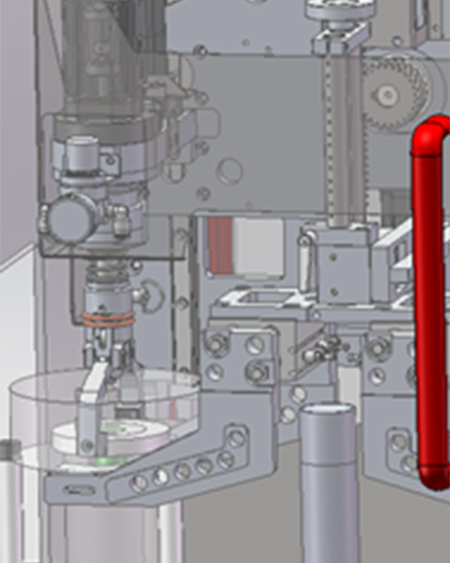

Capping

The two-claw capping machine applies caps with adjustable torque, ensuring secure closure without damage.

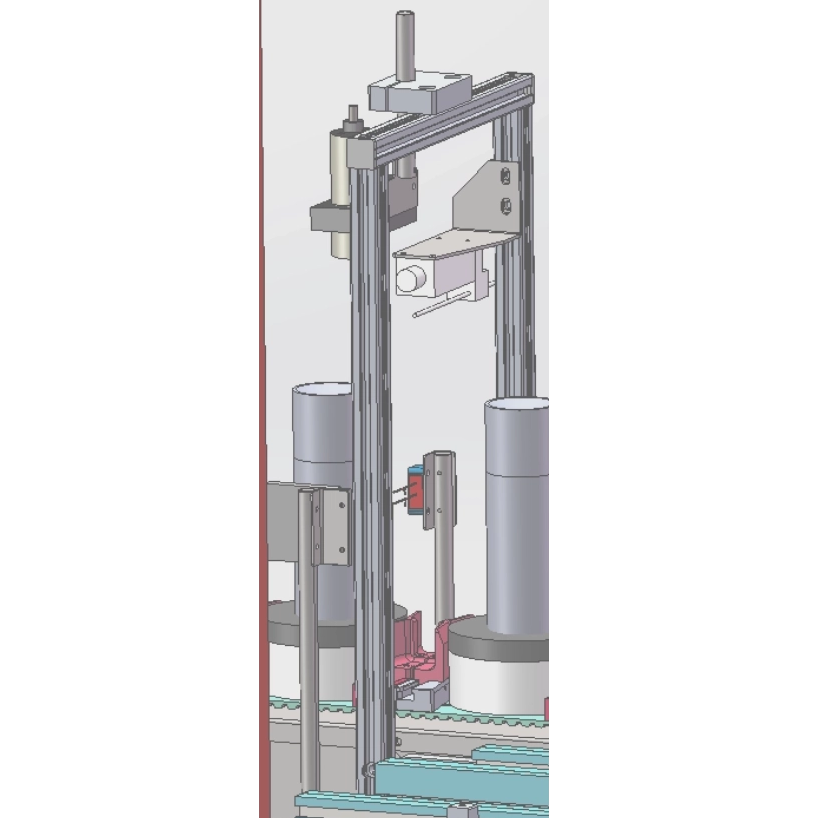

Cap Inspection

A microswitch (Omron D4V-8107Z-N) detects misaligned caps, triggering automatic rejection by a robotic controller.

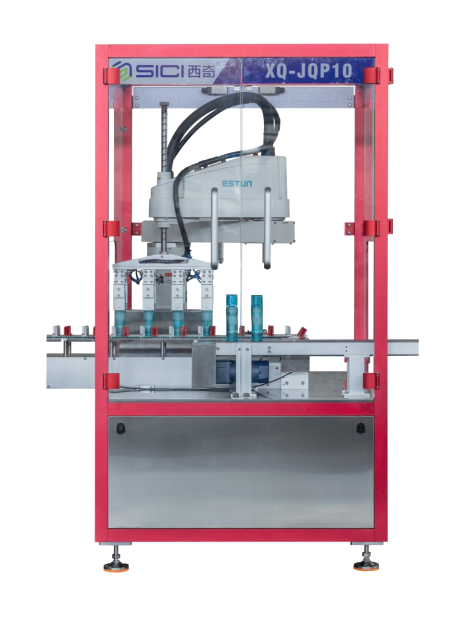

Bottle Removal & Demolding

A robotic arm transfers bottles at ≥60 bottles per minute, preparing them for cartoning or palletizing.

Automation and Integration

The line features a PLC control system with a touchscreen HMI for intuitive operation. Servo motors enable precise filling and capping, while an Ethernet communication port allows integration with smart factory systems. Multi-stage recipe selection and memory tracking enhance flexibility for different products and bottle sizes.

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Ideal for filling and packing liquids like beverages, sauces, and dairy products (e.g., milk, yogurt). The SUS316L material ensures compliance with food safety standards.

Pharmaceuticals and Healthcare

Supports precise filling of pharmaceutical liquids and emulsions, meeting stringent hygiene and accuracy requirements.

Cosmetics and Personal Care

Handles viscous products like creams, lotions, and serums, with customizable filling volumes (20-1000ml) and bottle sizes.

Household Chemicals

Suitable for packaging household cleaners, detergents, and chemical solutions, with robust construction for safe handling.

What Makes Us Different

High Efficiency and Accuracy

Achieves a production speed of 60 bottles per minute with filling accuracy of ±0.5g/0.5%, reducing waste and boosting throughput.

Flexible Customization

Supports a wide range of bottle sizes (φ28-100mm, 35-200mm height) and cap types (φ20-100mm). The mold conveyor and filling system can be tailored to specific needs.

Advantages-of-Our-Filling-and-Packing-Line

Cost-Effective and Reliable

Durable SUS304/316L construction and a simple, low-maintenance design (e.g., one-piece conveyor belt) minimize downtime and operational costs.

International Standards Compliance

Meets food, pharmaceutical, and chemical industry standards with stainless steel materials and sealed glass enclosures to reduce emissions.

Get The Latest Price

Technical Specifications of the Filling and Packing Line

Production Capacity

Filling Machine	60 bottles/min (150ml benchmark, emulsion medium).
Capping Machine	Approximately 60 bottles/min.
Bottle Removal Machine	≥60 bottles/min (depending on reject rate).

Machine Dimensions

Filling Machine	1760×1250×1875mm (L×W×H).
Capping Machine	1100×1100×2250mm.
Bottle Removal Machine	1450×1400×2210mm.

Power and Air Requirements

Power	AC220V, 50Hz; Filling Machine: 12KW, Capping Machine: 5.5KW, Bottle Removal: 1.5KW.
Air Pressure	0.5-0.7MPa (dry, clean compressed air).

Optional Configurations

Customizable mold sizes and clamping mechanisms.
Integration with labeling, cartoning, or palletizing systems.
Ethernet-enabled smart factory connectivity.

Get In Touch With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation (typically 1-2 weeks), and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.
