You are here: Home » Customized Cartoning Machine XQ-A170

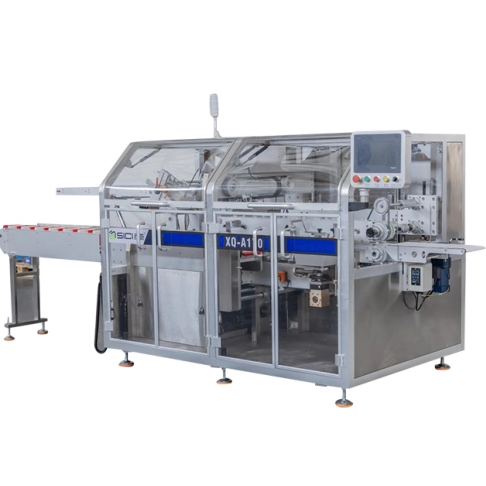

Customized Cartoning Machine XQ-A170

A cartoning solution designed for high efficiency and versatility across multiple industries.

Packing Size:	(100-220) mm × (50-160) mm × (20-75) mm
Production Capacity:	30-60 packs / min
Total Power:	2.8kw
Working Voltage:	220V/380V
Air Pressure:	0.4-0.8Mpa
Machine Weight：	1400kg
Machine Dimensions:	3830×1400×1680mm

Request a Quote Today

Introduction to Customized Cartoning Machine XQ-A170

What is a Customized Cartoning Machine XQ-A170 ?

The XQ-A170 Customized Cartoning Machine is a multi-function packing solution developed for cosmetics, pharmaceuticals, and food industries. Engineered for small size, light weight, and wide application, this machine delivers high production efficiency. It is capable of integration with filling or overwrapping machines to achieve optimal packaging effects , and meets the national drug production quality management standards (GMP) requirements.

Contact Our Support Team

Machine Features of Customized Cartoning Machine XQ-A170

Start A Project With Us

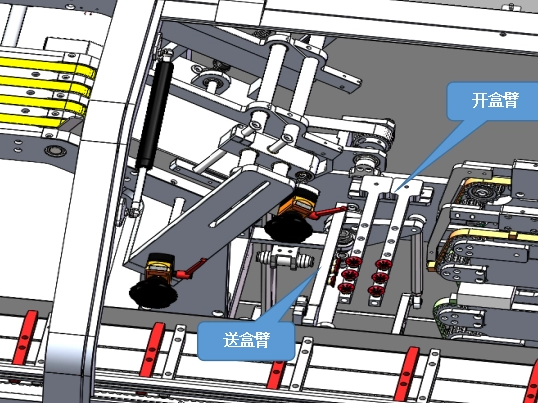

Non-Damaging Box Opening Mechanism

A multi-angle three-suction cup mechanical action opens the carton, ensuring that the plastic suction cups contact the carton during taking, opening, and sending into the hopper.

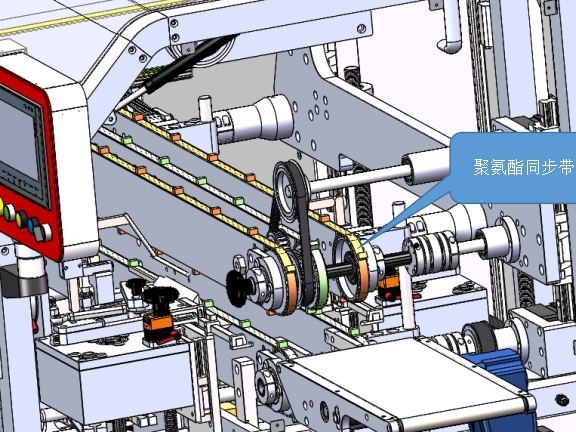

Non-Marring Box Transport Mechanism

Utilizes a mechanical cam linkage drive. The contact surface with the carton is made of polyurethane synchronous belt.

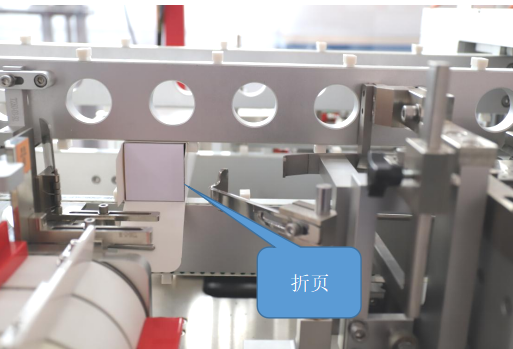

Folding & Closing Linkage Mechanism

Cam-driven for precise, compact, and easily adjustable operation.

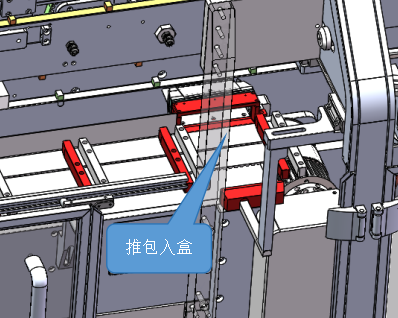

Precise Product Pushing Mechanism

The package pushing mechanism is mechanically linked, and the position is both accurate and adjustable.

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Our XQ-A170 Cartoning Machine offers efficient packaging for snacks and drinks at 30-60 packs/min. With GMP compliance and servo control, it enhances food safety and production speed

Pharmaceuticals and Healthcare

XQ-A170 ensures precise pharmaceutical packaging with GMP standards at 30-60 packs/min. Ideal for pills and tubes, it boosts healthcare product safety and efficiency.

Cosmetics and Personal Care

The XQ-A170 provides fast cosmetics packaging at 30-60 packs/min with servo adjustments. Perfect for creams and lotions, it ensures non-damaging, high-quality results.

Household Chemicals

XQ-A170 offers robust chemical packaging at 30-60 packs/min with servo control. Ideal for detergents and sprays, it ensures safety and efficiency in household goods.

What Makes Us Different

Non-destructive packaging care

The core mechanism ensures stable, high-speed, and high-accuracy liquid filling, minimizing spillage and maximizing product consistency.

Versatile Application

Capable of handling various viscosity liquids, commonly seen in water/lotion/cream filling lines and soft tube filling lines

Advantages-of-Our-Filling-and-Packing-Line

High Efficiency & Accuracy

The design allows for fast processing with a high labeling accuracy of ±1mm (excluding product and label errors), ensuring quality output.

User-Friendly Design

Features are similar to our XQ-P type machines , which are known for their simplicity and convenient maintenance .

Get The Latest Price

Technical Specifications of Customized Cartoning Machine XQ-A170

Main Technical Parameters

Packing Size	(100-220) mm × (50-160) mm × (20-75) mm
Production Capacity	30-60 packs / min
Total Power	2.8kw
Working Voltage	220V/380V
Air Pressure	0.4-0.8Mpa
Machine Weight	About 1400kg
Machine Dimensions	3830×1400×1680mm

Get In Touch With Us

Work With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation (typically 1-2 weeks), and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.
