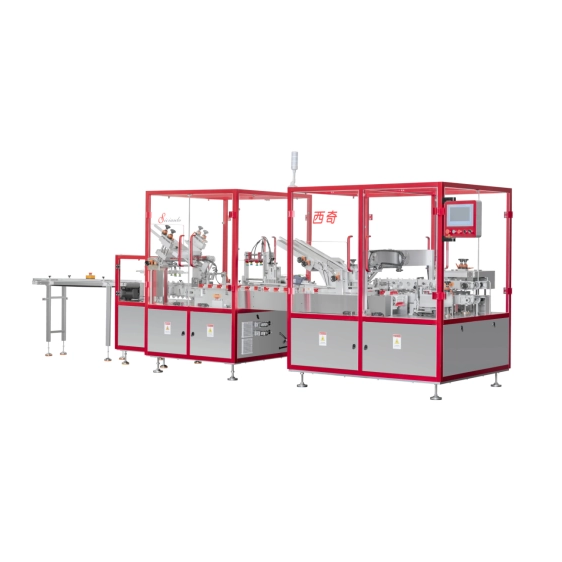

Cartoning Machine With Liner XQ-TZ60

A cartoning machine solution designed for high efficiency and versatility across multiple industries.

Packing Size:	L(65-220mm) × W(30-70mm) × H(20-70mm)
Production Capacity:	30-60Boxes/min (determined based on packaging material and product size)
Total Power:	6kW
Working Voltage:	380V
Air Consumption：	5-8L/min
Air Pressure:	0.4-0.8Mpa
Machine Weight：	About 2000kg
Machine Dimensions:	4100x1400x1680mm(LxWxH)

Request a Quote Today

Introduction to Cartoning Machine With Liner

What is a Cartoning Machine With Liner ?

The XQ-TZ Series Multi-Functional Cartoning Machine (With Liner Insertion) is a high-end packaging solution from Wuxi Sici Auto, incorporating multiple national patents. Designed specifically for cosmetics, pharmaceuticals, and premium food products that require internal liner/tray placement, its core Dual-Servo Liner Feeding Mechanism handles various complex liners with exceptional gentleness, ensuring zero damage to products. Combining high speed, remarkable stability, and user-friendly operation, it is the ideal choice for enhancing your production line automation and guaranteeing impeccable product packaging.

Contact Our Support Team

Process diagram

This customized packing line exemplifies the core of smart factory solutions, seamlessly integrating industrial automation and intelligent manufacturing. The process begins with bottles being laid down and fed onto a conveyor (Steps 1-2). The system then automatically feeds liners, using suction cups to precisely insert the bottles into the shaped liners (Steps 3-5). In the packing phase, this automated packaging system employs suction to pick and open boxes, pushes the bottle-liner assembly into the carton, and finally automatically folds the flaps and cover to seal the box (Steps 6-10). This highly efficient packaging solution is ideal for achieving high-speed and reliable automatic bottle and carton packaging, widely applicable in the food, beverage, and pharmaceutical industries.

Machine Features of Cartoning Machine With Liner

Start A Project With Us

Machine Transmission Principle & Design Patent

The machine features a unified full-servo drive system that provides centralized digital control over three core stations: the Carton Magazine, Carton Transport Channel, and Liner

Dual-Servo Liner Feeding Mechanism

A unique dual-servo cooperative motion trajectory first separates the liner at a 45° angle for pre-forming, then switches to a straight-line press for complete forming. This process significantly reduces stress deformation and surface scratches, making it ideal for fragile, high-value cosmetic liners.

Non-Marring Box Opening Mechanism

A multi-angle, three-suction cup manipulator with food-grade silicone suction cups gently picks, opens, and places cartons onto the conveyor, completely preventing damage to surface coatings.

Non-Marring Box Transport Mechanism

Precision mechanical cams drive the folding and closing actions. The structure is compact, stable, reliable, and easy to adjust, guaranteeing perfect folding and sealing for various carton styles.

Folding and Closing Linkage Mechanism

A mechanically linked pushing mechanism ensures accurate and adjustable positioning (via digital display), gently inserting products (bottles, boxes, tubes) into the carton.

Product Pushing Mechanism

The main drive features high-strength cam structures with inverter-controlled variable speed. Equipped with a torque overload protector, it automatically disengages during anomalies to protect core mechanical components from damage.

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Our XQ-TZ60 Cartoning Machine offers efficient food packaging with servo adjustments and 30-65 packs/min. Ideal for snacks and beverages, it ensures GMP compliance and boosts production efficiency.

Pharmaceuticals and Healthcare

The XQ-TZ60 ensures precise pharmaceutical packaging with GMP standards. At 30-65 packs/min, it handles pills and devices, enhancing healthcare product safety and cleanroom efficiency

Cosmetics and Personal Care

Optimized for cosmetics, XQ-TZ60 provides servo-adjusted liners and 30-65 packs/min. Perfect for creams and serums, it ensures non-damaging packaging and sustainable beauty solutions.

Household Chemicals

XQ-TZ60 offers robust chemical packaging with servo control and 30-65 packs/min. Ideal for detergents, it ensures safety and efficiency with eco-friendly household solutions.

What Makes Us Different

Dual-Servo Liner Placement system

This innovation enhances the accuracy and efficiency of our cartoning machine, making it ideal for high-end cosmetics packaging.

Cam Drive: Robust & Reliable

This proven design allows our high-speed cartoning machine to operate smoothly at 30-65 boxes/minute with low maintenance needs, ideal for demanding continuous production lines.

Advantages-of-Our-Filling-and-Packing-Line

Non-Marking Handling

Our cartoning machine is the premier choice for gentle packaging equipment, ensuring your products are presented flawlessly.

Smart Control: Versatile Integration

With a wide packaging range, our machine adapts quickly to diverse products, serving as a key component for the smart factory and enabling flexible manufacturing.

Get The Latest Price

Technical Specifications of Cartoning Machine With Liner

Main Technical Parameters

Model	XQ-TZ60	TZ60-GS	XQ-TZ60-M	TZ60-L
Packing Size	L(100-200),W35-70,H(30-90)mm	L(45-80)mm, W/H(20-80)mm	L(60-140), W(20-100), H(18-65)mm	L(100-220), W(35-80), H(30-70)mm
Production Capacity	30-65 packs / min
Total Power	5kw
Working Voltage	220V/380V
Air Consumption	5-8L/min
Air Pressure	0.4-0.8Mpa
Machine Weight	About 2000kg
Machine Dimensions	4100×1400×1680mm

Get In Touch With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation (typically 1-2 weeks), and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

Cartoning Machine With Liner FAQ

Q Which industries is this cartoning machine suitable for?

A It is widely used in cosmetics, pharmaceuticals, food, and other industries, especially suitable for high-end gift boxes and cosmetic packages requiring liners.
Q How is the carton protected from scratches during packaging?

A It uses a non-damage box opening mechanism and polyurethane synchronous belts for transport, preventing direct metal contact and effectively protecting the carton surface.
Q Does it support packaging for different box sizes?

A Yes, the machine supports a wide packing range: length 100-220mm, width 35-80mm, height 30-70mm, and allows quick adjustment based on product requirements.
Q What are the main features and advantages of this cartoning machine?

A This machine features compact size, light weight, wide application range, and high production efficiency. It supports liner packaging, can be integrated with filling and labeling machines, complies with GMP standards, and incorporates multiple patented technologies (e.g., dual-servo liner feeding, non-damage box opening).
