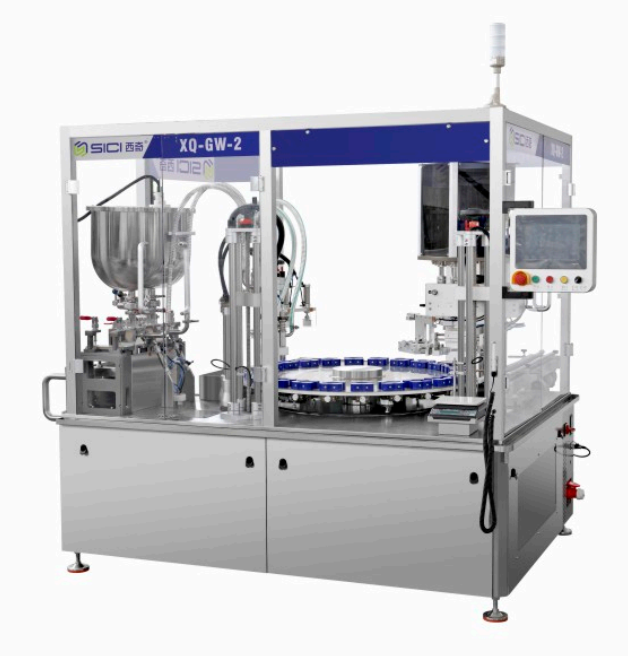

Fully Automatic Rotary Filling And Capping Machine XQ-GW-2

A automatic rotary filling and capping solution designed for high efficiency and versatility across multiple industries.

Weight:	About 1300Kg
Filling speed:	50mI Product >45Bottles/min (Using milk as medium)
Filing Accuracy:	10-100ml.±0.5g;101-300ml,+0.5%
Compressed Air:	0.5-0.7MPa
Filling Range:	5~50ml:15~150ml;30~300ml:60~600ml( Can be customized according to customer needs)
Machine Size:	2080x1570x2010mm(HxWxH)
Available Bottle Diameter: Air Consumption:	diameter 20-90mm(for diameters within 20-27mm, mold can be installed reversely installed to meet production needs) 150L/min

Request a Quote Today

Introduction to Filling And Capping Machine

What is a Filling And Capping Machine？

The rotary filling and capping machine combines bottle feeding, automatic dust removal, filling, capping, and outer cover pressing in a single compact unit. Its adjustable bottle molds make it suitable for different product sizes, offering flexibility for cosmetic, pharmaceutical, food, and chemical industries。。This design minimizes floor space while maximizing output, making it an ideal choice for businesses looking for efficiency and scalability.

Contact Our Support Team

Benefits of a Complete Solution

Advanced Dust Removal and Ion System

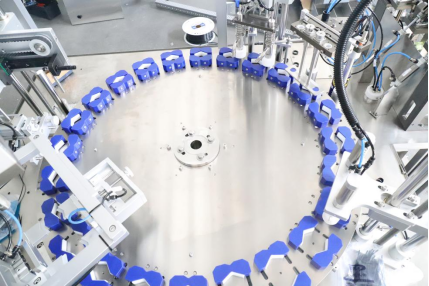

The mold conveyor system adjusts mold sizes manually to accommodate bottles (φ28-100mm, 35-200mm height), ensuring stable and equidistant transport to prevent tipping.

High-Precision Filling System

Two servo-driven filling nozzles provide superior accuracy and adjustable speed to handle foamy or viscous products effectively.

Anti-Collision Bottle Mouth Design

3.The new anti-collision design of bottle mouth is adopted to avoid the problems of sprinkling, bottle mouth damage and bottle head breaking caused by the impact of the filling head on the bottle mouth to be filled during the filling process.

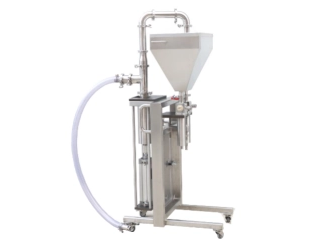

Dual Cart-Type Filling Systems:

The whole machine is equipped with two sets of filling system, filling system USES cart type design, all valves connection parts disassembly is very convenient for quick loading institutions, convenient customer fast for production.

Bottle Removal & Demolding

Using pneumatic to pressure inside or outside cover

Servo-Driven Intelligent Capping

With servo motor screw cap, torsion can be adjusted, and does not hurt the cap.

Adjustable Gripper Manipulator Handling

With manipulator grasping finished products to packaging, gripper head size is adjustable

Smart Weighing Feedback

8.Equipped with automatic weighing feedback system, automatic filling dose adjustment (used for debugging when adjusting the dose, the online inspection, the normal operation can take spot check when filling accuracy).

Rapid-Rotation Filling System

The whole machine is equipped with two sets of filling systems. During production change, the used filling system can be disassembled directly from the main machine and pushed directly into the cleaning room for cleaning. The spare filling system can be connected to the main machine for production.

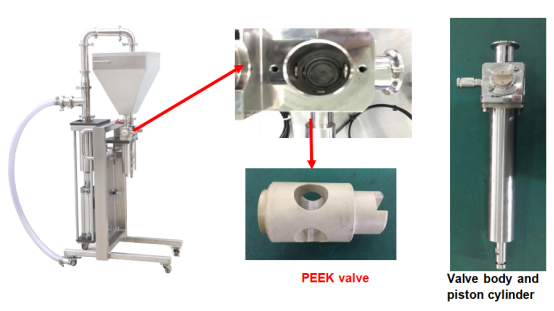

Easy-to-Clean Valves and Pipelines

Equipment filling valve using our custom foodstuff valve, valve, simple in structure, convenient in disassemble very clean no dead Angle, all the pipes adopt health level fast loading pipeline and quick release coupling, in full compliance with the GMP standard; The valve, pipe disassembly and cleaning are very convenient.

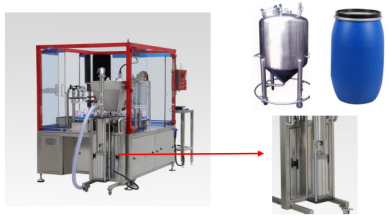

Quick Changeover System

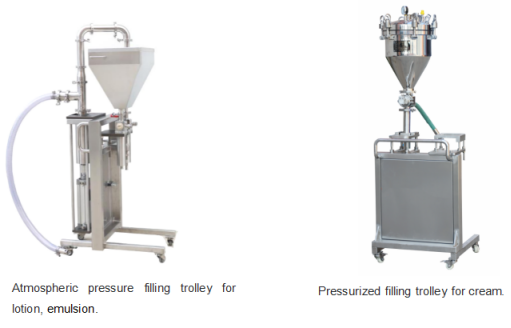

Equipped with two sets trolley (the trolley contains 1 set of feed pump, piston cylinder, filling pipe, container, valves, etc.), can be realized easily change production within 15 minutes.

Adjustable Mold Technology

Using the latest innovative design of adjustable type bottle mould, automatic production for a variety of packaging material, do not need to change the mould. (Adjustable without tools)

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Ideal for sauces, condiments, dairy, and functional drinks with strict hygiene requirements.

Pharmaceuticals and Healthcare

Ensures accurate dosing for syrups, solutions, and medical liquids under GMP compliance.

Cosmetics and Personal Care

Perfect for lotions, creams, serums, and other skincare products requiring hygienic and precise filling.

Household Chemicals

Handles detergents, cleaning solutions, and chemical liquids safely and efficiently.

What Makes Us Different

High Flexibility & Quick Changeover

The machine utilizes a modular cart-style filling system design, allowing for the entire filling unit to be quickly swapped out and cleaned offline.

Gentle Handling & Broad Compatibility

The innovative adjustable spring-loaded bottle mold design requires no tools to adapt to various container sizes (Ø20-90mm diameter).

Advantages-of-Our-Filling-and-Packing-Line

Advanced Control & High-Precision Filling

Equipped with two filling heads independently controlled by servo motors, the machine achieves high filling accuracy (±0.5g or ±0.5%)

x

Hygienic Design & Ease of Maintenance

Compliant with GMP standards, the machine employs custom food-grade valves with a simple, dead-space-free structure for thorough cleaning.

Get The Latest Price

Technical Specifications of the Filling and Capping Machine

Main Technical Parameters

Filling Range	10–100ml or 30–300ml, customizable to client needs.
Bottle Diameter Range	ø20–90mm (with special mold design for smaller sizes).
Bottle Height	up to 200mm, no adjustment required.
Filling Speed	≥45 bottles/min for 50ml lotion.
Filling Accuracy	±0.5g for 10–100ml, ±0.5% for 101–300ml.
Utilities	0.5–0.7Mpa air pressure, 150L/min air consumption, AC220V, 5KW power.
Dimensions & Weigh	2080×1570×2010mm, approx. 800kg.

Electrical Configuration

Schneider (France)	PLC, Touch Screen, Servo System
SICK (Germany)	Photoelectric Sensor
AirTAC (Taiwan)	Pneumatic Components
SMC (Japan)	Ion Generator

Get In Touch With Us

Work With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation , and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

The Filling And Capping Machine FAQ

Q Does it support quick changeover between different products?

A Yes. The machine is equipped with two sets of filling cart systems. Changeover can be completed within 15 minutes—one set can be used for production while the other is cleaned or prepared, significantly improving production efficiency and flexibility.
Q What is the filling accuracy? Is it suitable for foamy materials?

A The filling accuracy is high: ±0.5g for 10–100ml, and ±0.5% for 101–300ml. The machine uses a dual servo motor filling system with adjustable speed, effectively handling materials prone to foaming.
Q What is the warranty period for the machine? What does it cover?

A The standard warranty period for the whole machine is one year. Parts damaged by non-human factors will be replaced free of charge. After the warranty period, spare parts will be provided at factory prices.
Q How can I get technical support if a problem occurs?
A
A: We provide three support methods with a 24-hour response:
1. Remote guidance with pictures and videos;
2. Video call via WeChat or WhatsApp;
3. Arranging an engineer for on-site service (Travel expenses and a service fee of USD $200/day per person are borne by the customer).
