You are here: Home » Automatic Filling and Sealing Machine XQ-GF80A
crop_1762397325087

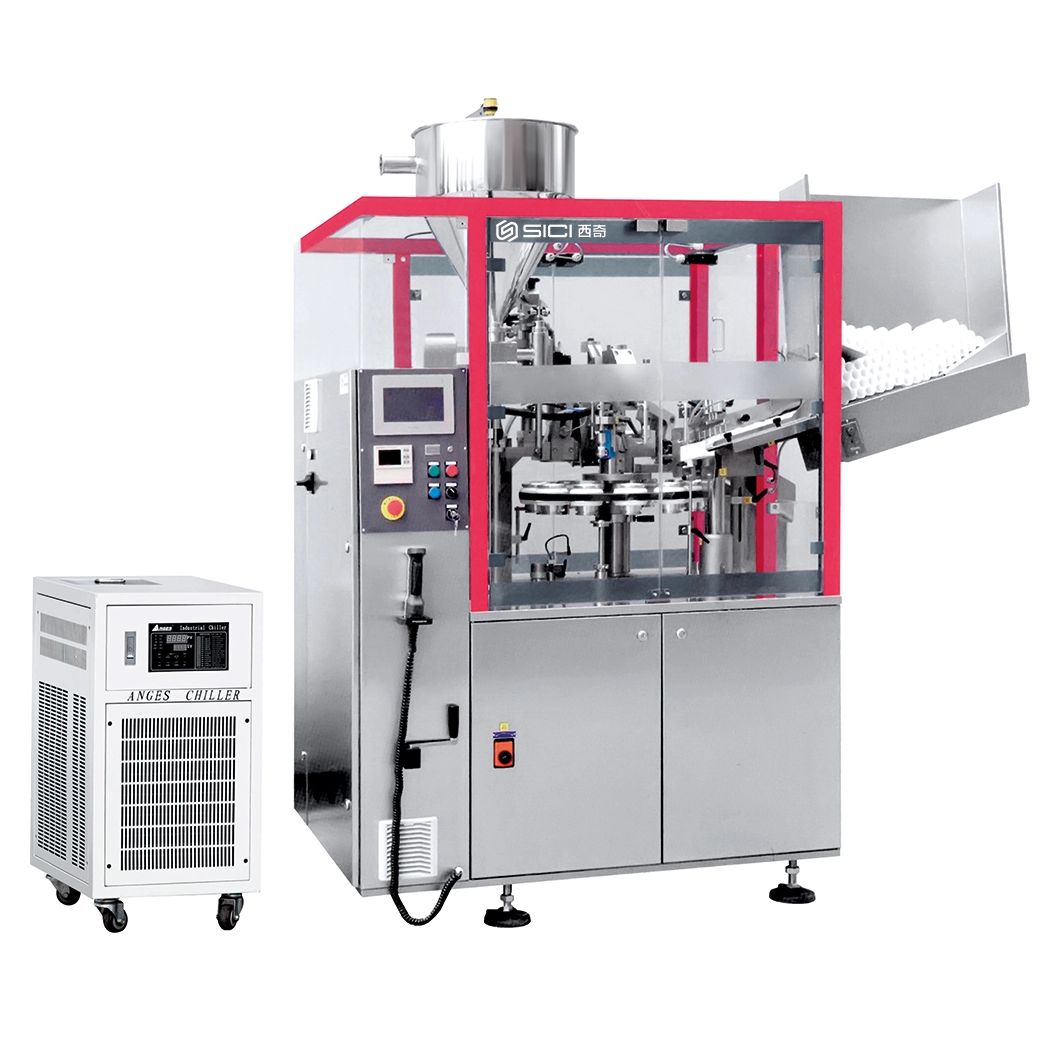

Automatic Filling and Sealing Machine XQ-GF80A

A  automatic filling and sealing  solution designed for high efficiency and versatility across multiple industries.
Weight: About 1200kg
Operation Speed: 50-75 tubes/min (max)
Compressed Air Consumption : 1.5m³/min at 0.5-0.6MPa
Power Supply: 50Hz/380V
Filling Range: 5-250ml (plastic/laminated tubes)
Machine Size: 2.2m x 1.2m x 1.9m (L×W×H)

Suitable Tube Diameter:

Suitable Tube Length:
 		 13-50mm

Up to 210mm

Introduction to Filling And Sealing Machine

What is a Filling And Sealing Machine？

A high-tech machine designed for filling and sealing plastic and laminated tubes, compliant with GMP standards. Ideal for cosmetics, pharmaceuticals, foodstuff, and adhesive industries, featuring advanced PLC control and color touch screen for programmable operation.

Benefits of a Complete Solution





Increased Efficiency



Achieve up to 75 bottles per minute, reducing production time.









Labor Savings



Fully automated processes minimize manual intervention.









Consistency & Compliance



SUS304/316L stainless steel construction ensures compliance with food and pharmaceutical standards.





Versatility



Handles a wide range of bottle sizes (φ28-100mm, 35-200mm height) and filling volumes (20-1000ml).


From Filling to Capping

Machine Features of the Filling and Sealing Machine

负离子1

Versatile Tube Handling

Supports plastic and laminated tubes with 12 stations and customizable manipulators for various tail folding and sealing requirements.
2

Automated Operation

Fully automatic processes including tube feeding, eye marking, interior cleaning (optional), filling, sealing, batch number printing, and product discharge.
3

Precision Control

PLC controller, color touch screen, and photo sensor with <0.2mm tolerance for accurate tube alignment.
4

Safety and Reliability

No-tube-no-fill functionality, low-pressure alarms, and automatic shutdown for errors or safety door activation.
9

Advanced Heating System

Double-layer jacket heater with air heating ensures firm, aesthetically pleasing seals without damaging tube patterns.
10

Adjustable Tube Storage

Motorized height adjustment for different tube lengths, with external reversal feeding system for efficient loading.
Solution

Applications in Different Industries

Rectangle 3(5)

Food and Beverage


Ideal for sauces, condiments, dairy, and functional drinks with strict hygiene requirements.
Rectangle 3(4)

Pharmaceuticals and Healthcare


Ensures accurate dosing for syrups, solutions, and medical liquids under GMP compliance.
Rectangle 3(1)

Cosmetics and Personal Care


Perfect for lotions, creams, serums, and other skincare products requiring hygienic and precise filling.

Rectangle 3(2)

Household Chemicals


Handles detergents, cleaning solutions, and chemical liquids safely and efficiently.


What Makes Us Different

efficiency




Versatility & High Adaptability


This 12-station machine can be equipped with corresponding manipulators to meet different types of tail folding and sealing requirements for both plastic and laminated tubes, making it a truly multi-purpose machine.
manufacturing (1)




Precise Control & Stable Quality


The mechanical linkage photo sensor ensures precision tolerance is less than 0.2mm, reducing the chromatic aberration scope between the tube and eye mark.
Advantages-of-Our-Filling-and-Packing-Line
profit-and-loss (1)




Fully Automated Production Process


It performs the entire procedure automatically, including tube feeding, eye marking, optional tube interior cleaning, material filling, sealing (tail folding), batch number printing, and finished product discharging.
x iso-certificate




Premium Configuration & High Efficiency


Key components are from internationally renowned brands , guaranteeing high reliability, accuracy, and production efficiency

Technical Specifications of the Filling and Sealing Machine

Main Technical Parameters

Filling Range

 5-250ml (plastic/laminated tubes)
Operation Speed

 50-75 tubes/min (max)
Suitable Tube Length Up to 210mm
Suitable Tube Diameter 13-50mm
Power Supply 50Hz/380V
Main Motor 1.5KW
Dimensions & Weigh 2.2m x 1.2m x 1.9m (L×W×H), approx. 1200kg.
Hot Air Generator 3KW (LEISTER, Switzerland
Jacket Barrel Heating Power 2KW (optional)
Jacket Barrel Blending Power 0.18KW (optional)
Compressed Air Consumption 1.5m³/min at 0.5-0.6MPa
Material Contact Parts 316L Stainless Steel
Control System PLC + Touch Screen, with components from SCHNEIDER, YASKAWA, SIEMENS, and BANNER / PLC

Why Choose Us as Your Partner

experiences







Rich Industry Experience



Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support







Global After-Sales Support



We offer comprehensive training, installation , and worldwide after-sales service to ensure smooth operation.

filling-machine







Successful Case Studies



Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

The Filling And Sealing machine FAQ

To Perfect Your Production!

SICIAUTO operates with a global vision, delivering automated equipment and customized packaging solutions for industries such as cosmetics, pharmaceuticals, and food. The concept of the 'Smart Factory' is embedded in every machine and production line we design.
