Automatic Tube Filling and Sealing Machine XQ-BF80

A automatic tube filling and sealing solution designed for high efficiency and versatility across multiple industries.

Weight:	About 700kg
Operation Speed:	80 tubes/min (max)
Compressed Air Consumption :	1.5m³/min at 0.5-0.6MPa
Power Supply:	50Hz/380V
Filling Range:	2-400g (plastic/laminated tubes)
Machine Size:	1920mm x 1083mm x 2100m (L×W×H)
Suitable Tube Diameter: Suitable Tube Length:	13-50mm Up to 230mm

Request a Quote Today

Introduction to Tube Filling And Sealing Machine

What is a Tube Filling And Sealing Machine？

A high-tech machine designed for filling and sealing plastic and laminated tubes, compliant with GMP standards. Ideal for cosmetics, pharmaceuticals, foodstuff, and adhesive industries, featuring advanced PLC control and color touch screen for programmable operation.

Contact Our Support Team

Benefits of a Complete Solution

Increased Efficiency

Achieve up to 75 bottles per minute, reducing production time.

Labor Savings

Fully automated processes minimize manual intervention.

Consistency & Compliance

SUS304/316L stainless steel construction ensures compliance with food and pharmaceutical standards.

Versatility

Handles a wide range of bottle sizes (φ28-100mm, 35-200mm height) and filling volumes (20-1000ml).

From Filling to Capping

Machine Features of the Tube Filling and Sealing Machine

Start A Project With Us

High Production Efficiency

With a production capacity of up to 4,800 tubes per hour, the machine significantly increases efficiency. Actual speed depends on factors like material viscosity and tube size, ensuring optimized performance for different products.

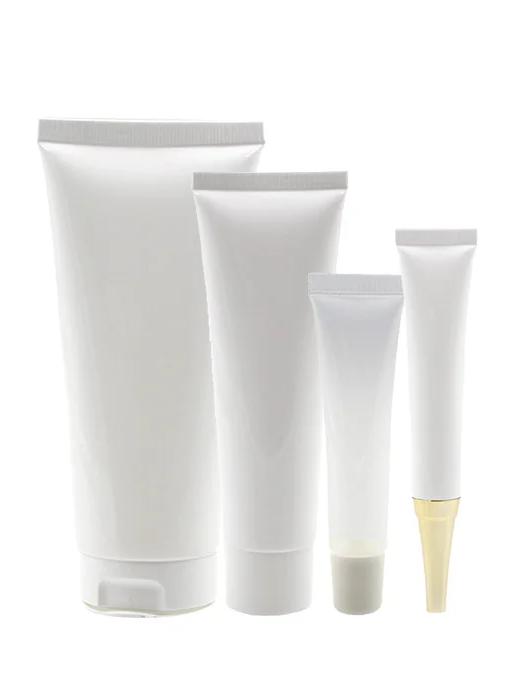

Hand-cream-eye-cream-lip-gloss-cleanser-plastic-cosmetic-soft-tube

Versatile Tube Compatibility

The machine supports a wide range of tube sizes, from 10mm to 50mm in diameter and 50mm to 230mm in length, making it ideal for various packaging needs, including both small and large production batches.

Precise Filling Accuracy

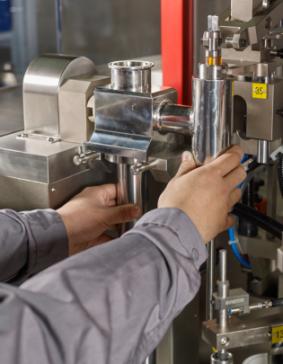

The filling is composed of a volumetric pump and a rotary piston, which is easy to disassemble, clean and sterilize; the filling accuracy is ± 0.3g for products below 50g, and ± 0.5g for products above 50g.

Advanced Sealing Technology

The machine features a hot air sealing system and precision cutting that prevents material leakage. It uses a special heating process to seal the tubes effectively while ensuring no drips at the end of the filling process.

Compliant with GMP Standards

The machine is designed in full compliance with GMP standards, ensuring hygienic production, easy cleaning, safe material contact, and stable, repeatable filling performance.

Durability and Low Maintenance

Constructed from high-quality stainless steel (AISI 316L) and low-wear parts, this machine offers durability and longevity. With a robust construction and few moving parts, it requires minimal maintenance, ensuring long-term savings.

Solution

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Ideal for sauces, condiments, dairy, and functional drinks with strict hygiene requirements.

Pharmaceuticals and Healthcare

Ensures accurate dosing for syrups, solutions, and medical liquids under GMP compliance.

Cosmetics and Personal Care

Perfect for lotions, creams, serums, and other skincare products requiring hygienic and precise filling.

Household Chemicals

Handles detergents, cleaning solutions, and chemical liquids safely and efficiently.

What Makes Us Different

Versatility & High Adaptability

This 12-station machine can be equipped with corresponding manipulators to meet different types of tail folding and sealing requirements for both plastic and laminated tubes, making it a truly multi-purpose machine.

Precise Control & Stable Quality

The mechanical linkage photo sensor ensures precision tolerance is less than 0.2mm, reducing the chromatic aberration scope between the tube and eye mark.

Advantages-of-Our-Filling-and-Packing-Line

Fully Automated Production Process

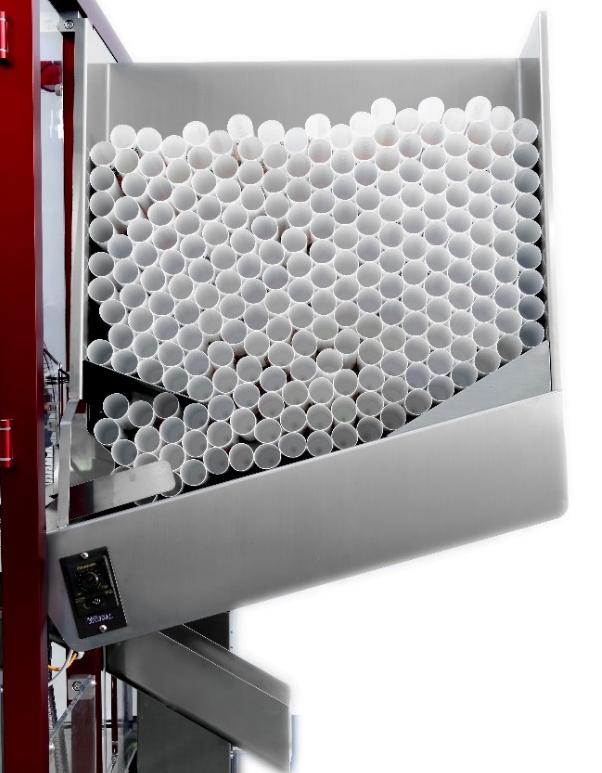

It performs the entire procedure automatically, including tube feeding, eye marking, optional tube interior cleaning, material filling, sealing (tail folding), batch number printing, and finished product discharging.

x

Premium Configuration & High Efficiency

Key components are from internationally renowned brands , guaranteeing high reliability, accuracy, and production efficiency

Get The Latest Price

Technical Specifications of the Tube Filling and Sealing Machine

Main Technical Parameters

2Filling Range

2-400g (plastic/laminated tubes)

Operation Speed

80 tubes/min (max)

Suitable Tube Length

Up to 230mm

Suitable Tube Diameter

13-50mm

Power Supply

50Hz/380V

Main Motor

1.5KW

Dimensions & Weigh

1920mm x 1083mm x 2100m (L×W×H)

, approx. 700kg.

Hot Air Generator

3KW (LEISTER, Switzerland

Jacket Barrel Heating Power

2KW (optional)

Jacket Barrel Blending Power

0.18KW (optional)

Compressed Air Consumption

1.5m³/min at 0.5-0.6MPa

Material Contact Parts

316L Stainless Steel

Control System

PLC + Touch Screen, with components from SCHNEIDER, YASKAWA, SIEMENS, and BANNER / PLC

Get In Touch With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation , and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

The Tube Filling And Sealing machine FAQ

Q What is the production efficiency of the equipment?

A The maximum operating speed of the equipment can reach 75 tubes per minute, depending on the product characteristics.
Q Does it support different sealing styles?

A
Yes. It is a multi-purpose machine with 12 stations. Different manipulators can be equipped to meet various tail folding and sealing requirements for plastic and laminated tubes.
Q What automated functions does the equipment have?

A The equipment can fully automatically perform tube feeding, eye marking, (optional) tube interior cleaning, paste filling, sealing (tail folding), batch number embossing (including manufacturing date), and finished product discharge.
Q What types of tubes can this automatic filling and sealing machine handle?

A It is suitable for aluminum-plastic composite tubes, plastic composite tubes, and plastic tubes. The tube diameter range is 13-50mm, with a maximum tube length of 210mm and a filling capacity of 5-250ml.
