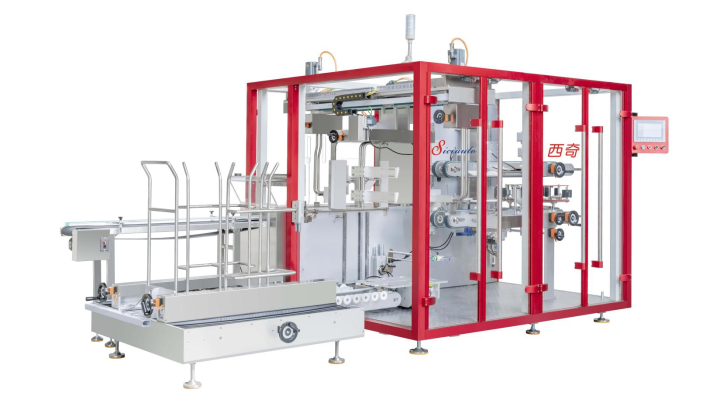

Automatic Case Packer XQ-ZX660

A case packer solution designed for high efficiency and versatility across multiple industries.

Packing Size :	(250-550) mm × (200-400) mm × (160-400) mm
Production Capacity:	1-5 cases / min
Total Power:	4.5kw
Working Voltage:	220v/380v 50/60HZ
Material Feeding Height:	800±50mm
Outlet Height: Air Compressure:	800±50mm 5.5~6kg/cm

Request a Quote Today

Introduction to Automatic Case Packer

What is a Automatic Case Packer ？

The XQ-ZX660 Fully Automatic Side-Push Case Packer is an efficient and economical integrated packaging solution from Wuxi Sici Auto. Designed for automating the packaging of medium to large cartons, it seamlessly integrates multiple processes including automatic case picking and forming, product collating and side-push loading, and automatic bottom sealing. Its unique side-push packing method ensures smooth operation with minimal product impact, making it particularly suitable for boxed products or those with secondary packaging. This machine is the ideal choice for enhancing end-of-line packaging efficiency and reducing labor costs.

Contact Our Support Team

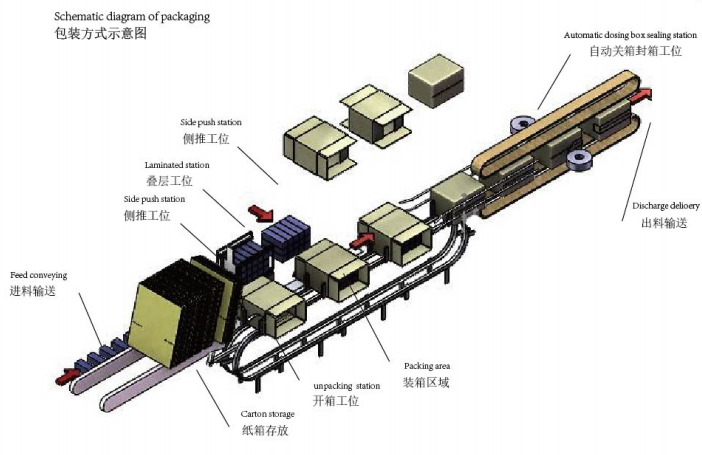

Process diagram

This flowchart clearly illustrates the fully automatic case erecting, loading, and sealing integration process of the XQ-ZX660 side-load case packer. It’s ideal content for keywords like fully automatic case packer, side-load cartoning machine, and intelligent packaging line.

The process starts at the Carton storage area, where flat boxes proceed to the Unpacking station. Simultaneously, products enter via Feed conveying and are grouped at the Side push station and Laminated station. Products are then pushed into the Packing area for side-load case packing. The cycle concludes at the Automatic dosing box sealing station (closing and sealing) , with final Discharge delivery. This servo-driven system demonstrates an efficient automated packaging solution.

.

Machine Features of the Automatic Case Packer

Start A Project With Us

Multi-Servo Precision Drive

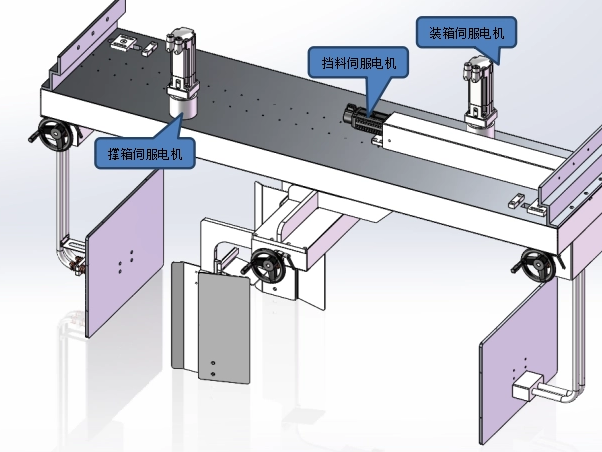

Utilizes multiple servos (for blocking, packing, case opening, feeding) for precise, synchronized movements.

Easy Size Adjustment

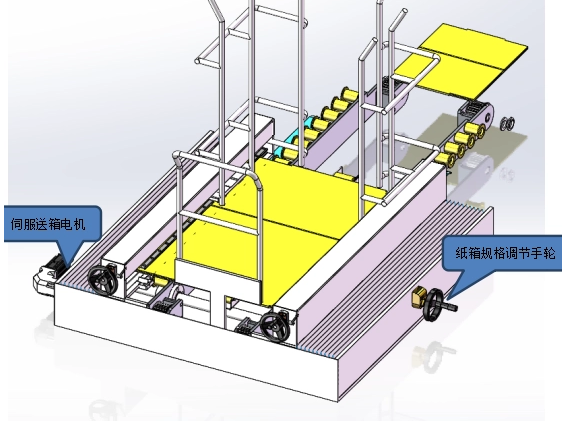

Mechanical handwheel adjustment for carton dimensions, combined with servo-controlled parameters set via HMI for quick changeover.

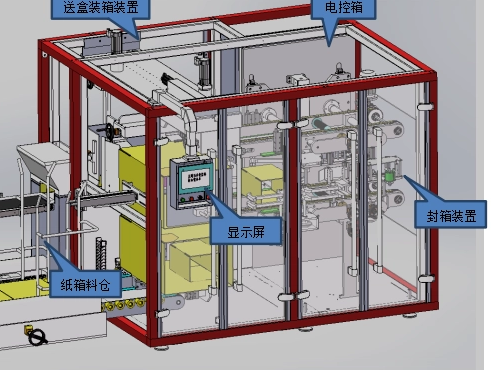

High-Capacity Magazine

Large magazine capacity reduces manual replenishing, supporting continuous production.

Reliable Sealing System

Robust sealing unit works with various tape sizes for secure and neat sealing.

Applications in Different Industries

Boost Your Business Now

Food and Beverage

Ideal for sauces, condiments, dairy, and functional drinks with strict hygiene requirements.

Pharmaceuticals and Healthcare

XQ-ZX660 offers precise case packing for pharmaceuticals at 1-5 cases/min. GMP-compliant, it enhances safety and efficiency for drug and medical product packaging.

Cosmetics and Personal Care

The XQ-ZX660 automates cosmetics case packing at 1-5 cases/min. Ideal for creams and perfumes, it ensures efficient, high-quality beauty product packaging.

Household Chemicals

XQ-ZX660 provides robust case packing for chemicals at 1-5 cases/min. Perfect for detergents, it ensures safety and efficiency in household product packaging.

What Makes Us Different

Gentler Side-Push Loading

The lateral pushing action is smoother than traditional top-down loading, minimizing damage to products, especially fragile or pre-packaged items.

Fully Automatic Integrated Operation

Automates the process from empty case feeding to finished product discharge, significantly reducing manual labor.

Advantages-of-Our-Filling-and-Packing-Line

Wide Size Adaptability

Handles various case sizes (L:250-550mm, W:200-400mm, H:160-400mm), offering great flexibility.

x

Easy Adjustment & Reliable Operation

Combines handwheels and servo motors for quick changeover; robust structure ensures long-term stability.

Get The Latest Price

Technical Specifications of Automatic Case Packer

Main Technical Parameters

Packing Size (LWH)	(250-550) mm × (200-400) mm × (160-400) mm
Production Capacity	1-5 cases / min
Total Power	4.5kw
Working Voltage	220v/380v 50/60HZ
Air Compressure	5.5~6kg/cm2
Outlet Height	800±50mm
Material Feeding Height	800±50mm
Machine Weight	1500kg
Machine Dimensions	L3400 mm ×W2000 mm ×H1900 mm

Get In Touch With Us

Work With Us

Why Choose Us as Your Partner

Partner With Us

experiences

Rich Industry Experience

Wuxi Sici Auto Co., Ltd brings years of expertise in designing intelligent filling and packing solutions for global industries.

customer-support

Global After-Sales Support

We offer comprehensive training, installation , and worldwide after-sales service to ensure smooth operation.

filling-machine

Successful Case Studies

Our solutions have helped clients, such as a dairy producer, increase production speed by 40% and reduce material waste by 10%.

Automatic Case Packer FAQ

Q What does the after-sales service include?

A We provide a 1-year warranty, lifelong maintenance, 24/7 remote technical support, factory-price spare parts supply, and rapid fault response and resolution.
Q Which industries is this case packer suitable for?

A It is widely used in the final packing stage in industries such as cosmetics, pharmaceuticals, food, and daily chemicals, and can be integrated with upstream equipment like cartoning machines and filling machines.
Q Is the machine easy to adjust?

A Yes, the machine is equipped with multiple handwheel adjustment devices (e.g., storage width, height, forming width) for quick adaptation to different carton sizes.
Q How are the cartons automatically formed and packed?

A The carton blanks are adsorbed by suction cups, automatically opened and formed by the rotating pick-up rod, then products are pushed into the carton by the side-push mechanism, completing automatic flap folding and bottom sealing.
